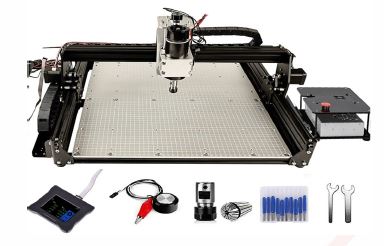

PCB Milling Machine

• Working Area: X: 140 mm, Y: 200 mm, Z: 40 mm
• Machine Dimensions: 380 mm × 460 mm × 290 mm
• Spindle Speed: At least 11,000 RPM (brushless motor)
• Spindle Mount (Collet Size): 3.175 mm (1/8 inch)
• Max Axis Speed: At least 170 mm/min (X, Y, Z)
• Repeatability: ±0.02 mm
• Step Resolution: 0.004 mm/step
• Connectivity: USB (compatible with USB 1.x/2.0/3.0/3.1) – cable included (1.6m)
• Power Supply: 100–240 VAC, 50/60 Hz, ≤1.2 A
• Frame & Structure: Solid aluminum body with low-noise brushless spindle motor
• Motion System: High-stiffness plastic slide blocks for linear motion
• PCB processing: Single / Double-sided milling supported
• Frame and Axis: Solid aluminum frame with low-noise brushless spindle
• Sliding plastic block bearings, high stiffness Included Accessories (PCB Set): -Drill and milling bits (0.2 mm – 1.1 mm, TiN-coated) -Engraving bits (10°, 15°, 20°, 30°) -Riveting toolset for vias (0.6 mm) -Double-jaw clamp and aluminum holders -UVcurable solder mask & foil mulch -FR4 test boards (sample material) -Cut2D Desktop Software License -Quick-start guide & online documentation -All other necessary components and tools to operate the device are included
• Software Compatibility:
• Supported OS: Windows, macOS, Linux
• Software: Wegstr CNC + Vectric Cut2D or Similar
• Supports: Gerber, Excellon, SVG, G-code
• Supported Materials:
• FR1, FR2, FR4 PCB boards
• Copper & aluminum plates
• Plastics: PMMA, ABS, polycarbonate Wood, MDF
• Engraving on brass, soft metals
