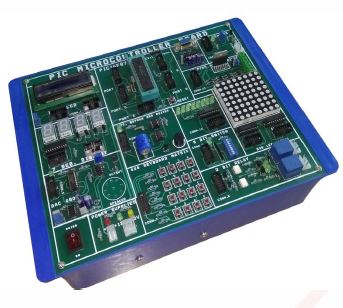

PIC Development & Training System

Key Features
• Programmable Interface Controllers (PICs) area family of low cost Reduction Instruction Set Computer (RISC) microcontrollers those are powerful and easy to use.
• The PIC Development & Training System is based on the versatile microchip PIC16F877 CMOS FLASH device in a 44-pin PLC and has in-circuit bugging. It can be used for various applications as a target board for educational purposes.
• It can also be used as a stand-alone via a serial port to a PC, allowing easy downloads of control code, developed using Microchips MPLAB software or high level language development software. The system is capable of running at clock speeds of 20MHz or above.
• These devices are based on the Harvard architecture of separate program and data storage areas and are self contained systems providing on-chip RAM or FLASH RAM (program area) and I/O.
• The PIC Development & Training System comprises the board with a suitable power supply and connection cables, software on CD and experimental manual. The Microprocessor Applications Board (supplied separately) is required to provide the full range of experiments in the manual.

PIC Development & Training System minimally covers the following:

• Outputting data
• Inputting data
• Inputting & outputting data
• Subroutines & delays
• Digital to Analogue conversion
• (DAC)
• Analogue to Digital conversion (ADC)
• Successive approximation ADC
• Seven segment display
• Multiplexing seven segment display
• Scanning the keypad
• Controlling the DC motor
• DC motor speed Control
• DC motor control using IR sensor
• Temperature control
• Fibre optic link
• Stepper motor
• LCD Features
• 10MHz controller speed
• RS232 serial communications
• 8k (14-bit) Flash program memory
• 8 x 10-bit analogue
• Input channels
• In-circuit bugging
• MPLAB PC programs sent direct to PIC device
• Source code viewable when loaded for programming
• Comprehensive experiment manual included
