Pipe Friction Apparatus .
SPECIFICATION

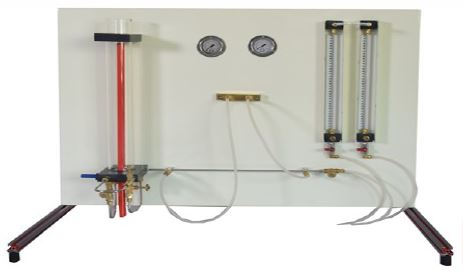

Pipe Friction Apparatus
General Description:
- This equipment measures pressure drop when water flows through a vertical pipe at various flow rates both laminar and turbulent. It is to be used with Hydraulics Bench (separately supplied) for a water supply and flow measurement.
- It consists of adjustable constant head water source of removable clear acrylic cylinder for laminar flow. Turbulent flow may be achieved by directly connecting the pipe to the Hydraulics Bench water supply. A water manometer with a vent valve, a hand air pump and a differential pressure gauge are provided for measurement of pressure drop. A valve at the outlet is used to control outlet pressure. Instruction manual is also included.
Experiment Capabilities:
- Investigations of laminar and turbulent flows
- Demonstration and measurement in a change of the laws of resistance (friction factor) from laminar to turbulent flow
Technical Data:
- Acrylic cylinder: 1
- Venturi tube: 450 mm
- Differential pressure gauge: 1
- Test pipe: Stainless steel
- Test section length: Over 500 mm
- Measuring cup:1
- Net (unassembled) Shipping Dimensions WxLxH: 36 x 36 x 115 cm
- Net Weight: Approx. 10 kg
- Catalog / Brochure should be submitted.
