Plate Bearing Test Machine
Order Code: 22235575.1.48
Category: General Lab Equipment I
Use: for estimating the bearing capacity of shallow foundations in situ and for the design of flexible pavement; also used for load tests of soil and flexible pavement components. Hydraulic assembly with pressure read out unit Plate bearin...
SPECIFICATION
- Use: for estimating the bearing capacity of shallow foundations in situ and for the design of flexible pavement; also used for load tests of soil and flexible pavement components.

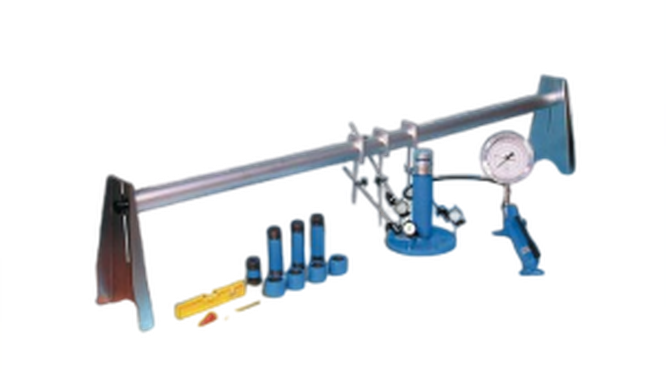

- Hydraulic assembly with pressure read out unit Plate bearing hydraulic assembly, 500 kN cap. composed by double-stage manual pump, cylinder, extension rods and spherical seat with magnetic connection complete with three dial gauge.
- Supports DATALOG 8, 8 channels multipurpose data logger, battery operated and with rigid carrying case suitable for use on field: - 5.7" Touch screen graphic colour display - 8 independent analogue input channels - programmable VEXC via firmware/software from 0.5 to 10 V for each couple of channels [up to 4] - Compatible with load cells, pressure transducers, strain gauge, LDT / LVDT / potentiometric type displacement transducers and any type of conditioned transducer having
- Output signal 0-10 VDC or 0-20 mA - Effective resolution: 131,000 divisions [+/- 65,500] - Numerical and graphical display of readings - unlimited storage Capacity with USB pen drive - LAN / Ethernet connection to PC via dedicated software [see accessory 82- P9008/SOF] - Battery operated: Internal rechargeable sealed battery 12V, 7.2 Ah and built-in battery charger 110-230 V, 50-60 Hz, 1 ph.
- Power cable included Set of four cables for connecting load cells, pressure transducers, strain gauges, LDT / LVDT / potentiometric type displacement transducers to DATALOG 8 [82-P9008] and GEODATALOG 8 [ 30-WF6008]
- Pressure transducer 0-700 bar [connecting cable not included] Device for displacement measurement
- Adjustable support for displacement gauge to be fitted on the datum bar of the plate bearing test equipment, compatible with all displacement gauges. It also includes a magnetic reference disk to be positioned on the loading plate.
- Linear potentiometric transducer, 50 mm travel with cable 6 pin connector
- Loading Plates :Loading plate 300 mm [12"] dia x 25 mm [1"], suitable for bearing test equipment. Supplied complete with carrying handles and centering pin.
- Loading plate 456 mm [18"] dia x 25 mm [1"], suitable for bearing test equipment. Supplied complete with carrying handles and centering pin.
- Loading plate 608 mm [24"] dia x 25 mm [1"] suitable for bearing test equipment. Supplied complete with carrying handles and centering pin.
- Loading plate 760 mm [30"] dia x 25 mm [1"], suitable for bearing test equipment. Supplied complete with carrying handles and centering pin.
- Reference Bar Datum bar 2.5 m long for bearing test equipment. Aluminium made, easy mounting, height adjustable ,complete with supports and spirit level.
- Upgrading kit to exted the datum bar to 5.5 m
- Extension kit to extend the datum bar from 2.5 m to 5.5 m.
- It shall be ordered along with datum bar 2.5 m.
- Adjustable support for displacement gauge
