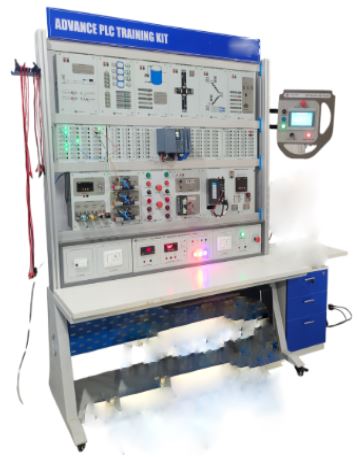

PLC and HMI Training Kits
Technical Specification

1. This technical specification has been prepared for the procurement of a PLC and HMI Training Kit – Basic, intended for conducting experimental work in the field of industrial automation, improving employees' practical skills, strengthening theoretical knowledge, and enhancing their professional qualifications.

2. The equipment shall be designed to develop skills in working with industrial controllers (PLC) and Human-Machine Interfaces (HMI), including programming, testing, and modeling of automated systems.

Main Purpose of the Equipment

1. The system shall provide the following capabilities:

2. Programming of PLC controllers

3. Development of HMI interfaces

4. Working with sensors and actuators

5. Simulation of automated technological processes

6. Learning data exchange between PLC and HMI

Main Technical Requirements

1. PLC Section

2. The PLC controller shall have the following technical specifications:

3. PLC type: Allen-Bradley

4. Number of slots: 8

5. 32 Digital Inputs (Digital Input)

6. 32 Digital Outputs (Digital Output)

7. 6 Analog Inputs (Analog Input)

8. 6 Analog Outputs (Analog Output)

9. Programming capability via Ethernet and USB

10. Support for Ladder Logic programming language

11. Ability to connect with a computer

12. HMI Section

13. The HMI panel shall have the following specifications:

14. Screen size: 10 inches

15. Touchscreen display

16. Communication with PLC via Ethernet or Serial interface

17. Capability to create visual interfaces

18. Real-time data display

Components Required in the Training Kit

1. The training kit shall include the following components:

2. PLC controller (Allen-Bradley)

3. HMI panel

4. Sensors (limit switch, proximity sensor, or analog sensors)

5. Control push buttons

6. Indicator lights (LED indicators)

7. Relay modules

8. Power supply unit

9. Wiring cables and terminal blocks

10. Training panel enclosure

Software

1. The following software shall be provided with the system:

2. PLC programming software

3. HMI configuration software

Scope of Supply

1. The supplier shall provide:

2. PLC and HMI Training Kit – Basic (1 complete set)

3. Connection cables

4. User manual

5. Warranty documentation

Warranty and Technical Support

1. Warranty period: minimum 12 months

2. Technical support services

3. Availability of remote or on-site consultation

Additional Requirements

1. All components must comply with industrial safety standards

2. The system must have a durable structure suitable for repeated use in training environments
