PLC HMI TRAINER

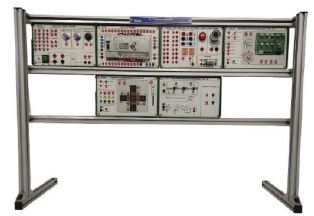

1. MACHINE DESCRIPTION - The 20 I/O Programmable Logic Controller HMI Trainer is a system that integrate a PLC CPU module and HMI (touch screen version) with the input and output devices in a box to make easy to use.
2. It can be used to control pneumatic, hydraulic and others automation devices or systems.
3. At the output terminals of the trainer, there are dual color LED indicator/lamps (green/red) connected parallelly to the PLC outputs to indicate the logic status and it can also be connected to output devices/actuators via 4mm safety sockets.
4. At the input terminals of the trainer, there are number of toggle switches to provide input signals to the PLC and it can also be connected to external sensors/transducers via 4mm safety sockets. The PLC is built inside the casing with I/O devices for ease of use. The programming can be done via PC with programming software.

SPECIFICATION & ACCESSORIES

1. CPU (compulsory)
2. Standard 20 I/O Programmable Logic Controller +
3. Digital input : 12, 24VDC inputs
4. Digital output : 8, relay contacts
5. Program capacity : 8K steps (32Kbytes)
6. Data memory capacity : 8K words
7. Programming language : Ladder diagram
8. Analog input : 2
9. Analog output : 1
10. Built-in communication ports : USB port and RS232C port
11. Timers/Counter : 256 bits each10. High-speed counters : 100kHz x 2 inputs and 10kHz x 4 inputs

HMI TOUCH SCREEN PROGRAMMABLE TERMINAL, NB7WTW00B (compulsory)

1. 7” Human Machine Interface Unit (Touch Screen version) withRS232C and USB interface ports
2. Come with NB7W-TW00B enclosure and stand
   APPLICATION MODULE
3. The applications modules are designed based on industrial applications to aid teaching of PLC Programming and hardware construction. The module layout enabled students to easily understand each experiment section as it is worked upon. The module are:
   - DC motor
   - Stepper motor
   - Servo motor
4. segment display- traffic light
   - proximity inductive sensor-proximity capacitive sensor
   - infrared sensor
   - elevator simulation
5. MANUAL AND EXPERIMENT PROCEDURES
   •Equipment operation manual - 1 set
   •Experimental Lab Sheet and Procedures if any - 1 set
