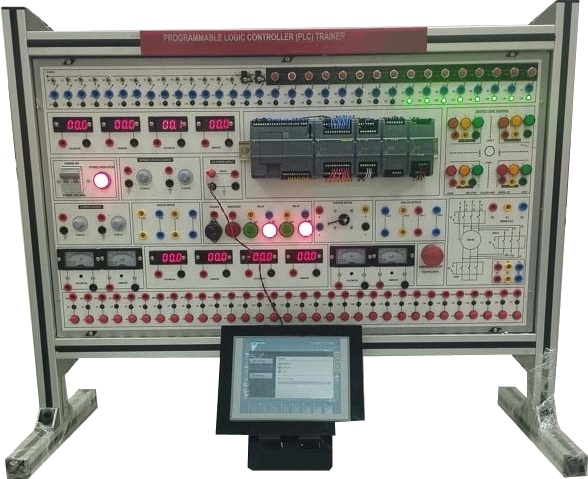

Brand New PLC Training Kit

• Brand and Model: (to be specified by the bidder)
• Application: training students on automation using PLC and use for PLC Programming Practice
•  Automation Simulation, Vocational & Technical Training, System Integration Exercises.
  The Set Consist of:
  -  Product Size (L×D×H) mm: 500 × 200 × 550 (±20mm)
  -  Color: Metallic Silver
  -  Power supply: AC 220V-240V
  1. Simens PLC CPU S7-200 Smart
•  Width of module volume: 304mm
• Power supply: AC220v 1A
• Output: DC24/2A
• Digital input and output
• Interface of PLC

2. VFD inverter experimental module

• Siemens V20 series with built-in BOP
• Communication: USS, MODBUSRTY communication, V/fV2/fFCC multi-point V/f control
• The I/O schematic diagram of the inverter is printed on the panel which is easy to analyze the working principle

3. HMI MCGS Touch Screen Insertio

•  Input Power: 24V DC
• Touch screen: MCGS 7-inch, 65535 true color LED backlight widescreen display, touch screen, resistive, 128MB RAM
•  Communication: Ethernet, RS232/RS483, USB
  Inverter function parameter setting and operation:
  -  External terminal jog control
  -  PLC, touch screen and inverter communication control
  -  Communication control between host computer, PLC and inverter
  -  Inverter control motor is reversed
• -  Multi-step speed selection frequency control
• -  Inverter stepless speed regulation
  -  Variable    frequency    speed    control    of    external    analog (voltage/current) mode
  -  Instantaneous power failure start control
  -  Motor forward and reverse control of the external terminals of the inverter based on PLC
  -  Multi-speed control based on PLC digital method
  -  Variable  frequency  open  loop  speed  control  based  on  PLC analog quantity
  -  Variable frequency control based on PLC communication method (USS)
  -  Basic instruction programming exercises based on touch screen
  -  Digital display control based on touch screen control
  Included: Ladder programming software
  Standard Requirement:
  -  Standard and Compliance: CE, ISO 9001, ISO/IEC 17024, or IEC 61131-3, ISO 13849 certificate or equivalent.
  -  Supplier Requirement Experiences: at least 5 years.
  -  Language: English language available on machine and manual.
  -  Warranty: At least 1 year on Mechanical, Electrical parts and Services.
