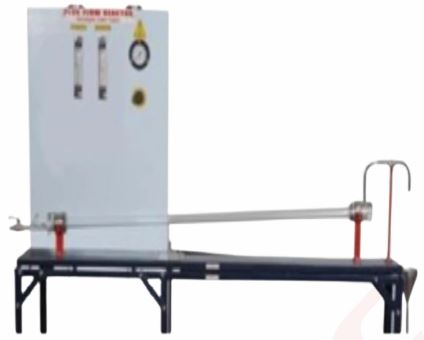

Plug Flow Reactor (PFR)
SPECIFICATION
Plug Flow Reactor (PFR)
- Automatic temperature and flow control with PID controller
- Plant supervision by P.C.
- Exercises can be carried out: ? Kinetics of hydrolysis of ethyl acetate Framework of AISI 304 stainless steel with caster
- Two feeding tanks of AISI 316 stainless steel, 10 L capacity
- Product collection tank of AISI 316 stainless steel, 20 L
- Tubular reactor, 2 L capacity, jacketed with AISI 304 stainless steel
- Electronic conductivity meter
- 2 variable area flow meters
- Tube-in-tube heat exchanger at reactor outlet
- Neutralization tank: borosilicate glass, 2 L capacity
- 2 gear pumps of AISI 316 stainless steel
- Metering pump for neutralization solution
- Piping and valves of AISI 304 and AISI 316 stainless steel
- Switchboard IP55 with EC conformity mark, plant synoptic, ELCB
- Emergency button
- Pneumatic valve of AISI316 stainless steel
- Microprocessor digital PID controller with serial card
- Windows supervision software for ON-OFF control, PID signals, real-time trends and historical trend
- Power supply: 230Vac, 50Hz single-phase – 1 kVA
- Dimensions: 1800 × 600 × 2100 mm
- Weight: 180 kg
- Supplied with THEORETICAL – EXPERIMENTAL HANDBOOK
