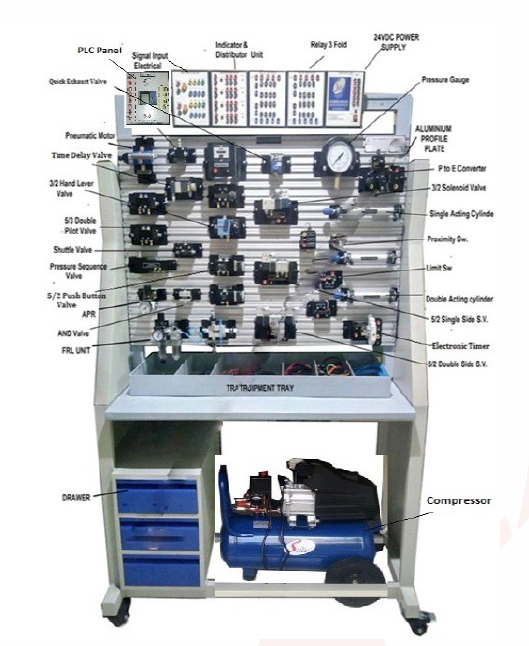

Fluid transmission teaching platform
Overall dimensions (WDH): 15 6 0 mm × 750 mm × 1 580 mm, module capacity 3 U-294TE;
Desktop, aluminum wood steel mechanical loadbearing,
?color-sprayed aluminum-magnesium alloy profile (material grade 6063);
Countertop material: high-density board, top layer thermosetting resin laminated board facing, fire-resistant and scratch-resistant; –?Power supply and signal screen: The plug-in
box module meets the IEC 60297 "Mechanical Structure of Electronic Equipment" standard specification. The box body is made of brushed oxidized aluminum alloy profiles.
The module supports tool-free plug-in and pull-out replacement, and has an ergonomic design;
–Extended functions: test wire racks, monitor stands, PC hosts, instrument racks, lighting devices, storage cabinets, etc. can be placed according to
needs, reflecting the scientific nature of laboratory equipment;
– 1 × three-layer drawer-type component cabinet, high-density board,
reliable design and high drawer strength; –The bottom is equipped with high-strength silent, wear-resistant adjustable feet;
Totally oil-free silent air compressor system
–Power supply: AC 220V 0.55kW;
Fluid parameters: rated pressure 0.6 MPa , constant pressure capacity 24L, flow rate:
102L/min,
Compressor: oil-free, silent and maintenance free 68dB;
–Interface compatible configurations: self-locking quick connector male and female,
PU pipe, reducing tee quick;
–Other configurations include air intake muffler, pressure regulating valve,
oil-water separator, pressure gauge, and automatic start and stop;
Using a high-quality, high-flow oil-free swing piston compressor as the power source can provide a stable oil-free gas source, prevent oil
from entering the human body, and avoid failure caused by oil in non-oil-resistant
pipes of terminal machines;
?This system is equipped with 1 set for every 4 sets of equipment;
Aluminum-magnesium alloy operating substrate
Overall dimensions (WDH) are not less than: 1 080 × 720 × 1 5 mm ^ 3 ;
–Industrial grade aluminum-magnesium alloy profile overlap, both front and back sides can be
used, T 8 groove structure, compatible with QuickInS quick installation system module;
–Convenient placement of various pneumatic and hydraulic function modules;
Strong, reliable and long service life;
Suitable for pneumatic and hydraulic disassembly and assembly, project design, mechatronics assembly, etc.;
PLC_DI module

–16× digital sink input;
–? Equipped with 8-channel simulation switch, each channel can be self-reset or self-locking;
–Each channel is equipped with photoelectric isolation protection to prevent mis operation
from damaging the PLC input point ;
Computer installation components
–Includes various accessories required for PC host support, monitor, etc. installation;    Windows 10 / Linux;
Processor: no less than CPU Intel 3.3 GHz 4-core L3 cache 12 MB;
Memory: no less than 8 G b D D R4 1600MHz, supports 64 GB;
Hard drive: no less than 256Gb SSD solid state ,
1T SATA mechanical; – Motherboard: Intel chipset integrated graphics card, sound card,
1 G bps Ethernet card; –Monitor: no less than 21.5 inches, widescreen;
Others: large chassis, 300W power supply, keyboard and mouse, 1-year on-site service;
Requirements: The chassis is easy to maintain and facilitates the plugging and
unplugging of various communication ports;
–1×VESA standard TFT/LCD monitor stand, the monitor is suspended in the air and can be adjusted at any variable angle. It can be rotated 180° and tilted to 45°, with a load capacity of 15kg;
–1×PC 1AC 220V computer power socket , 1×host bracket assembly;
The power supply, network cable, power cord, etc. are reserved at the rear of the platform to meet the matrix Reynolds hole function of complex wiring;
pneumatic function module kit
Compatible with substrate T-slot horizontal installation, fast component loading and unloading, flexible layout, reliable and strong fixation, and can meet transmission disturbance;
The experimental module meets the Quick-InS quick installation system,
which is simple and reliable to build various circuits on the profile substrate.
–The list is as follows:
1) 1X pressure regulating filter module; 2) 1X pneumatic relief valve module;
3) 1X equipment main air supply pipe; 4) 1X pneumatic pipe fitting package;
5) 1X double-acting cylinder function module; 6) 1X single-acting cylinder module;
7) 1X AND dual pressure valve module;8) 1X OR shuttle valve module;
9) 1X quick exhaust valve module;10) 2X induction check valve;
11) 1X 5/2 manual valve module;12) 1X 3/2 NC stroke valve module;
13) 1X 3/2 NO mechanical stroke valve module; 14) 2X 3/2 NC solenoid valve module single solenoid control;
15) 1X 5/2 air control valve module single air control; 16) 2X 3/2 NO solenoid valve module single
solenoid control; 17) 1X 5/2 solenoid valve module dual electric control; 18) 1X 5/2 solenoid valve module single solenoid control;
1X 5/2 air control valve module dual air control;
1X 5/2 delay reversing valve module; 21) 1X pneumatic one-way throttle valve
22) 2X limit switch module; 23) 2X proximity switch module;
24) 1X negative pressure vacuum assembly; 25) 1X pneumatic pipe fitting package, tee, cross, plug, etc.; 26) 10X PU pipe, raw material tape, etc.;
– ?The above main components adopt AirTAC (standard configuration); FESTO , Japanese SMC , etc. can also be used if separately agreed;
AC 220V/3A socket module
–Output: 1/N/PE AC 220V/3A 50Hz;
–Power socket: 2×5Pin, in line with the new national standard hole spacing ;
Switch power-on indication;
AC 220V power supply master control unit module
–Power supply: 1/N/PE AC 220V/16A 50Hz;
Residual current action: 5I?n30mA—40ms;
Key control switch, two-position start/stop, power-on light indication;
–Safety protection: with leakage voltage, leakage current, overload and short circuit protection, in line with national standards;

Siemens PLC host module
–S 7-200smart 18DI/12DO relay output;
–Input protection: 8-channel photoelectric isolation;
Counting 4 channels of 200 kHz without highspeed pulse output;
Expandability: Integrated power module and flexible variable module are used in this system device, including technologically advanced control systems and analog modules;
4×Rly Relay module
–4×DC 24V relay, 8 ×NO / NC with indicator light;
–Contact capacity 8 A, rated power consumption Σ2.5W
Action time <1 5mS ;
–3mm safety socket;
TI . RLY digital time relay module
–Power supply: AC 220V;
–Control accuracy: 0 3% ±0 05S;
–Contact capacity: AC 220V5A DC 30V 5A (resistive);
–Setting range: 0 1S—99H;
Cycle timing setting, on-off timing setting, reset, and pause functions;

4S / 4P button indicator module

–4x buttons 2NO/ 2NC, terminal output;
–2x indicator lights, terminal output;
Integrated button light, silver
contacts, self-locking/self-resetting;
Panel printing symbol standards ISO 7000-2018 ;
AC 220V power supply module
–Power supply: 1N/PE AC 220V 10A 50Hz;
Connector: 3Pin IP44 integrated power incoming/outgoing interface;
Cables are locked and incoming, and adjacent equipment can be continuously plugged in for power supply, eliminating the need for wiring;
Device accessory package

–Number of workstations: 2 workstations
–Power cables: power cords, safe silicone test lines that meet the requirements of experiments;
Communication cables: various communication cables, USB select lines, data lines;
Spare parts and wearing parts;
Blind plate (empty plate): Aluminum alloy plate spraying, suitable for upgrading the power signal screen module;
–Documentation and quality certificates: certificates, warranty cards and others;

Educational software package

–STEP 7-MicroWIN SMART200
–Teaching manuals are printed in perfect binding;
–HMI configuration interface DEMO sample program, host computer monitoring;
?Hydraulic and pneumatic transmission simulation teaching software: CAD function complies with DIN electrical, hydraulic (pneumatic) circuit diagram drawing standards, can conduct actual simulation and state diagram display of circuit diagrams based on component physical models, system learning concepts: can be used for self-study , teaching and multimedia teaching hydraulic (pneumatic) technical knowledge; can design electrical control circuits matching hydraulic and pneumatic circuits; various exercises and important circuit usage methods; use CD or USB flash disk media/projects;
Provide the operating source code of the device, basic platform software, and provide free upgrades;
Pneumatic Teaching Manual

Suitable for pneumatic technology series;
–A4 perfect binding, DEMO version sample
program;
Lesson plan structured content from the shallower to the deeper, working with teachers to complete various teaching tasks;
Based on the reference, direct courseware can be produced, which is easy for students to understand and can be used for direct experimental training;
Refer to the teaching content , which is related to the number of kits
——A basic pneumatic graphic symbols
——B commutation circuit
C0303 Double-acting cylinder manual reversing circuit
C0304 Double-acting cylinder electromagnetic commutation circuit
C0305 Single-acting cylinder speed control circuit C0306 Double-acting cylinder intake throttle speed
regulating circuit
C0307 Double-acting cylinder exhaust throttle speed regulating circuit
C0308 Double-acting cylinder two-way throttling and speed regulating circuit
C0309 Operate the circuit with both hands simultaneously
C0310 Electrical interlocking continuous reciprocating action circuit
C0311 Mechanical stroke valve continuous reciprocating action circuit
C0312 Synchronization loop C0313 Buffer circuit
——C speed control loop C0314 Speed switching circuit C0315 Stop loop midway
C0316 "OR gate" logic loop composed of shuttle valve
C0317 "AND gate" logic loop composed of double pressure valve
C0318 Energy saving circuit
C0319 Multi-cylinder sequential action circuit C0320 Delay loop
C0321 PLC multi-cylinder sequential action circuit C0322 PLC delay loop
C0323 PLC counting loop
C0324 PLC continuous reciprocating action circuit C0325 PLC buffer circuit
C0326 PLC speed switching circuit
——D vacuum technology
C0327 Understanding and Application of Vacuum Technology
