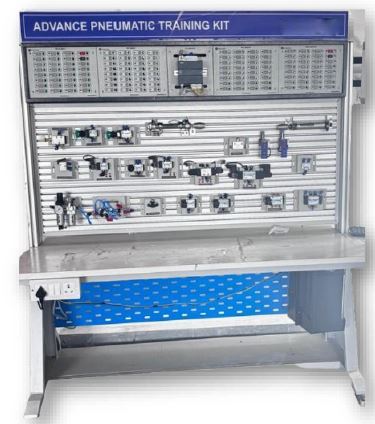

Pneumatics Training Kit

1. The system shall be compact and lightweight to minimize space constraints and allow easy storage and transport
2. A wide selection of modular components shall be provided, enabling diverse practical exercises using pneumatics (pure pneumatic, electro-pneumatic, and PLC-based)
3. Despite using miniature pneumatic components with low air consumption, output force shall be sufficient for training tasks without any functional limitation
4. The structure shall allow learners to perform tubing and wiring easily
5. The kit shall support interoperability with various external devices for extended practice
6. Low-power components shall be used; electrical connection sockets shall be 2 mm type
7. A slim, folding practice panel (12 mm thickness) to allow quick setup
8. (± 2 mm tolerance acceptable)
9. A 2-way one-touch clamp mechanism shall permit horizontal/vertical mounting and easy attach/detach at arbitrary positions

10. An aluminum profile panel populated with pneumatic/electrical practice components and a recessed foam

11. organizer for parts; shall allow rigid mounting of the electrical control panel

12. Design: The practice board shall move safely to storage or working angle using a damper mechanism when opening/closing the case

13. Case size: approx. 730(L) × 495(W) × 132(H) mm

14. (± 10 mm tolerance acceptable)

15. Profile plate size: 700(L) × 450(W) × 12(T) mm

16. (± 10 mm tolerance acceptable)

17. Profile plate material: Aluminum extrusion (rigidity reinforced)

18. Slot pitch of profile: 25 mm

19. (± 2.5 mm tolerance acceptable)

20. Components shall be mountable/detachable safely at arbitrary positions on the profile panel Includes an aluminum housing for installing an electrical control box
