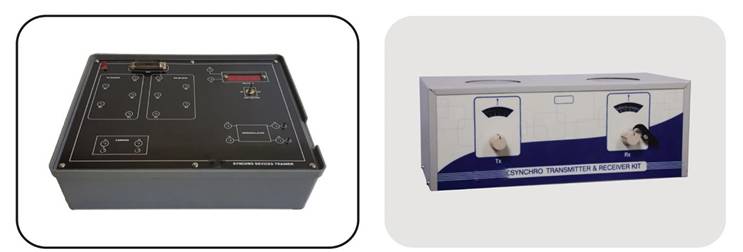

Position control system using Synchroscope -Trainer kit
Order Code: 26279896.4
Category: General Lab Equipment V
Position control system using Synchroscope -Trainer kit
SPECIFICATION
List of Experiments
1) Basic characteristics study - stator voltages as a function of the rotor angle using the built-in ac voltmeter.
2) Operation and error study of the transmitter-receiver pair as a simple open loop position control system at a very low torque.
3) Plotting the error voltage output as a function of the transmitter rotor angle with the receiver rotor locked.
4) Use of balanced demodulator to develop de error signal with appropriate polarity and compare it with the ac error
Features:
The input angular displacement displayed on anodized dial The output angular displacement displayed on anodized dial.
Two rotor terminals (R1 & R2) three stator terminals (S1, S2 and S3) are brought out on the front panel.
Synchro transmitter-receiver pair with calibrated dials
Locking system for receiver rotor
Receiver use as control transformer
Built-in balanced demodulator circuit
Panel meter for ac/dc voltages
