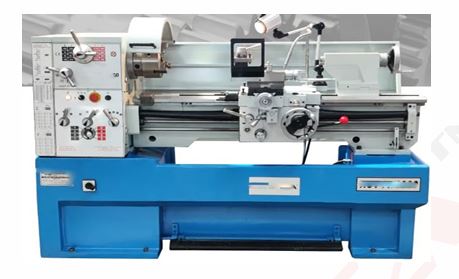

Professional precision lathe
Order Code: 25268467.8
Category: General Lab Equipment V
Technical Specification : Swing Over Bed - 560mm Swing Over Cross slide - 355mm Swing in Gap Diameter - 785mm Admit Between Center - 2000mm Spindle bore - 80mm Main Motor Power – 7.5Kw(3HP...
SPECIFICATION
Technical Specification :
- Swing Over Bed - 560mm
- Swing Over Cross slide - 355mm
- Swing in Gap Diameter - 785mm
- Admit Between Center - 2000mm
- Spindle bore - 80mm
- Main Motor Power – 7.5Kw(3HP)
STANDARD ACCESSORIES:
- 315mm x 3 Jaw Self-Centering Chuck 1 No.
- 350mm x 4 – Jaw Independent Chuck 1 No.
- Steady Rest (19-165mm) 1 No.
- Follow Rest (16-95mm) 1 No.
- Face Plate 450mm dia 1 No.
- Foot Brake 1 No.
- Coolant System 1 No.
- Machine Lamp 1 No.
- Centre 1 No.
- Centre Sleeve 1 No.
- Toolbox 1 No
OPTIONAL ACCESSORIES: (DOESNT COME WITH THE MACHINE)
- American Type Quick change tool post with 3 tools holder
- Taper turning attachment
- Key way milling attachment
- 3/4” Drill Chuck, arbor, socket
- 2 Axis DRO (DIGITAL READ OUT) unit with High Precision Scales & fittings
- 8” Cap. Tool post grinder with 1 HP 3 Phase Electrical Motor
- Revolving center MT – 5
- Key way milling attachment Motorized with thru chuck & motor
