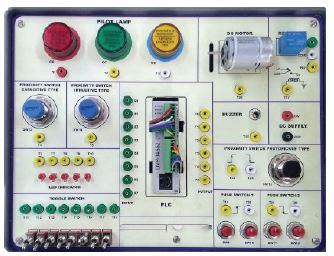

PROGRAMMABLE RELAY TRAINER

1. RELAY DESCRIPTION
2. Starter Kit provides a complete PLC learning and development package for automation and control applications. It includes the latest logic module with integrated web server and Ethernet communication, suitable for training, testing, or small-scale control projects.
3. SPECIFICATIONS
4. Soft Comfort, screwdriver in Systainer
5. Power Supply: 12/24 V DC or 115/230 V AC (depending on model)
6. Digital Inputs : 8 DI (expandable up to 24)
7. Digital Outputs : 4 DO relay or transistor (expandable up to 20)
8. Analog Inputs : 2 AI (0–10 V)
9. Memory : 400 function blocks (expandable)
10. Display : Backlit 6-line LCD, 16 characters per line
11. Communication :Ethernet (TCP/IP), Modbus TCP,
12. Web server
13. Expansion Modules : Up to 8 expansion modules (digital or analog)
14. Dimensions: 90 × 72 × 55 mm (main module) Mounting : DIN rail 35 mm
15. Latest version software
16. Access Tool
17. Web Editor V1.2
18. Integrity Tool
19. SGLAN Connector

ACCESSORIES

1. Soft Comfort software license
2. Power Supply (Power 24V/1.3A)
3. Programming cable (USB / Ethernet)
4. SD / microSD card (for program storage)
5. Expansion modules (digital / analog I/O modules)
6. DIN rail mount, enclosures, terminal connectors USB to Ethernet Adapter or LAN port
7. Wiring Ferrules & Sleeves
8. Expansion Modules 12/24R (digital expansion) / AM2 (analog input module)
9. Simulation Board: Prewired switches and lamps board for classroom exercises
10. Protective Transparent Cover - Acrylic shield for
11. safe student operation
12. Emergency Stop Switch
13. Main Isolator Switch
14. Push Buttons (NO) S
15. elector Switch (NO/NC)
16. Indicator Lamps (LED type)
17. Relay Module (Interposing Relay)
18. Miniature Contactor
19. Buzzer or Alarm Module
20. Pilot Lamp Board / Load Board
21. Small 24V DC Motor / Fan
22. Flexible Wire (Single-core)
23. End Plates, End Clamps
24. Cable Ties & Marking Stickers
25. Instruction Manual
