Features:

• Complete hardware and software setup to demonstrate Radar concepts
  Signals study on Software / Oscilloscope with the help of test points given on trainer
  Object Counter provided on trainer Real time fan RPM measurements and vibrations
  measurements with the help of tuning forks Tripod stand provided for height and level matching LED Indication for Doppler Echo Signal

Scope of Learning

• Study of the working of a Doppler Radar

• Study of determine the Velocity of the object moving in the Radar range

• Study of understand the principle of Doppler Radar of Time and Frequency measurement with the help of a moving pendulum

• Study of an Alarm System by using a Radar

• Study of the Object Counting with the help of Radar

• Study of the detection of vibration of different Tuning Forks

• Determine the Rotation Per Minute (RPM) of a moving object (Fan)

• Study of the effect of different types of materials on Radar reception or detection

Technical Specifications:

• Transmitter Frequency: 10 Ghz

• Output Power: 10mW (approximate)

• Operating Voltage: 8V-8.6V

• Antenna: Horn

• Antenna Gain: 16dB (Min)

• Sensitivity: -50 to -70dBm

• IF Output: Audio range

• Power Supply: 230V ±10%, 50 Hz

• Alarm: Onboard detected signal indication

• About Software

• Oscilloscope: Real time/Storage mode with FFT analysis

• Display: Voltage: Vpp

• Speed: Km/hr, Miles/hr, m/s, rpm

• Frequency: Hz & kHz

• Time domain window: Display the Doppler Frequency in Time domain
  Frequency domain window: Display the Doppler Frequency in Frequency domain

• Included Accessories:

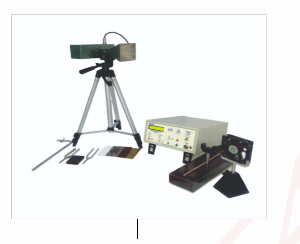

• Trainer Board, Audio Cable for PC Line In input, Din connector cable (5 Pin), Mains Cord, Tripod Stand,

• Fan Stand, Fan, Sliding Platform, Horn Antenna, Trans-receiver Unit, Software CD, Pendulum, stand for moving the pendulum, Operation manual, Tuning forks -2Pcs, Different objects- 3Pcs
