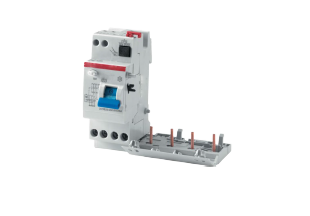

Residual Current Circuit Breaker with Over Current Protection
Order Code: 21225096.13
Category: General Lab Equipment I
Specification: Type of Residual Current: AC type Rated Voltage (Ur): 230/400 V Rated Operational Voltage: 230/400 V Rated Insulation Voltage (Ui): 500 V Rated Impulse Withstand Voltage (Uimp): 4 kV Rated Current (In): 25 A Rated Res...
SPECIFICATION
Specification:
- Type of Residual Current: AC type
- Rated Voltage (Ur): 230/400 V
- Rated Operational Voltage: 230/400 V
- Rated Insulation Voltage (Ui): 500 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Rated Current (In): 25 A
- Rated Residual Current: 30 mA
- Leakage Current Type: AC
- Rated Frequency (f): 50/60 Hz
- Power Loss: 3 W
- Power Supply Connection: Arbitrary
- Electrical Endurance: 10000 cycle
- Number of Poles: 4
- Operating Characteristic: Instantaneous
- Connecting Capacity: Rigid 16 ... 16 mm² , Flexible 16 ... 16 mm²
- Rated Cross-Section: 1 - Solid-Core 16...16 mm², 4 - Multi-Wired 16...16 mm²
- Ambient Temperature: -25...55 °C
- Ambient Air Temperature: Operation -25...55 °C
- Degree of Protection: IP2X
- Short-Circuit Current Rating (SCCR): 0.03 ... 0.03 A
