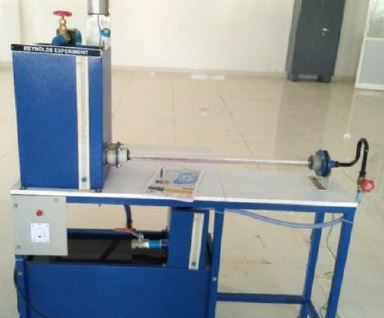

Reynolds Experiment Apparatus
SPECIFICATION
Reynolds Experiment Apparatus
Technical Specifications
Application/Test facility
- To visualize different flow regimes by observing dye patterns in fluid flow, helping determine the transition between laminar,transitional, and turbulent states.
Product Features
- Instrument Type: Table structure or bench top
- Flow Tube: Transparent borosilicate glass, approx. 600 800 mm length, 10 14 mm inner diameter
- Dye Injection: Stainless steel dye vessel (500 600 ml), capillary tube: Glass or better
- Head Tank: Stainless steel or powder-coated mild steel, minimum 40 L
- Sump Tank: Stainless steel or powder-coated mild steel, minimum 60 L
- Flow Control: Manual valves (brass/gunmetal/steel)
- Circulation: FHP pump, single phase, minimum 0.25 HP, 220 V
- AC, 50 Hz for circulation from inlet tank, test section, sump tank
- Measurement Tools: Measuring cylinder (1 L), electronic stopwatch
- Structure: Mild steel frame, corrosion resistant industrial PU paint or better
- Electrical Supply: 220 V AC, single phase, 50 Hz
- Installation Footprint: Minimum 1.3 × 0.6 meters
- Construction: Durable, corrosion-resistant frame and tan
Accessories/Spares
- Standard Color Dye
- Additional Capillary tube 1 set
