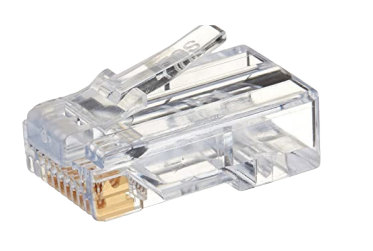

Rj45 for solid and stranded wires
Order Code: 22235575.3.58
Category: General Lab Equipment I
Performance category CAT6 Applications standard TIA/EIA568-2-D Housing material Polycarbonate UL flammability rating UL94V2 [RoHS Compliant] Contact type Three prong pin for solid/stranded wires Contact material Copper Contact plating Gold P...
SPECIFICATION
- Performance category CAT6 Applications standard TIA/EIA568-2-D Housing material Polycarbonate
- UL flammability rating UL94V2 [RoHS Compliant]
- Contact type Three prong pin for solid/stranded wires
- Contact material Copper Contact plating Gold Plating
- 50μ [1.27μm] Housing colour Clear Shield type Non-shielded Operating temperature -10? to 60?C Voltage/Current rating [UL applications] 125Volts AC/1.5Amps Dielectric withstanding voltage 1500Volts DC / AC peak Contact resistance ≤ 20mΩ Insulation resistance ≥ 500MΩ
- Insertion/Extraction cycles ≥ 1250 Cycles
- Wire gauge min/max min: 0.92mm Ø max: 1.02mm Ø
- Conductor diameter min/max min: 0.405mm Ø (26AWG) max: 0.511mm Ø (24AWG)
- Maximum cable jacket diameter-6.5mm ODØ
