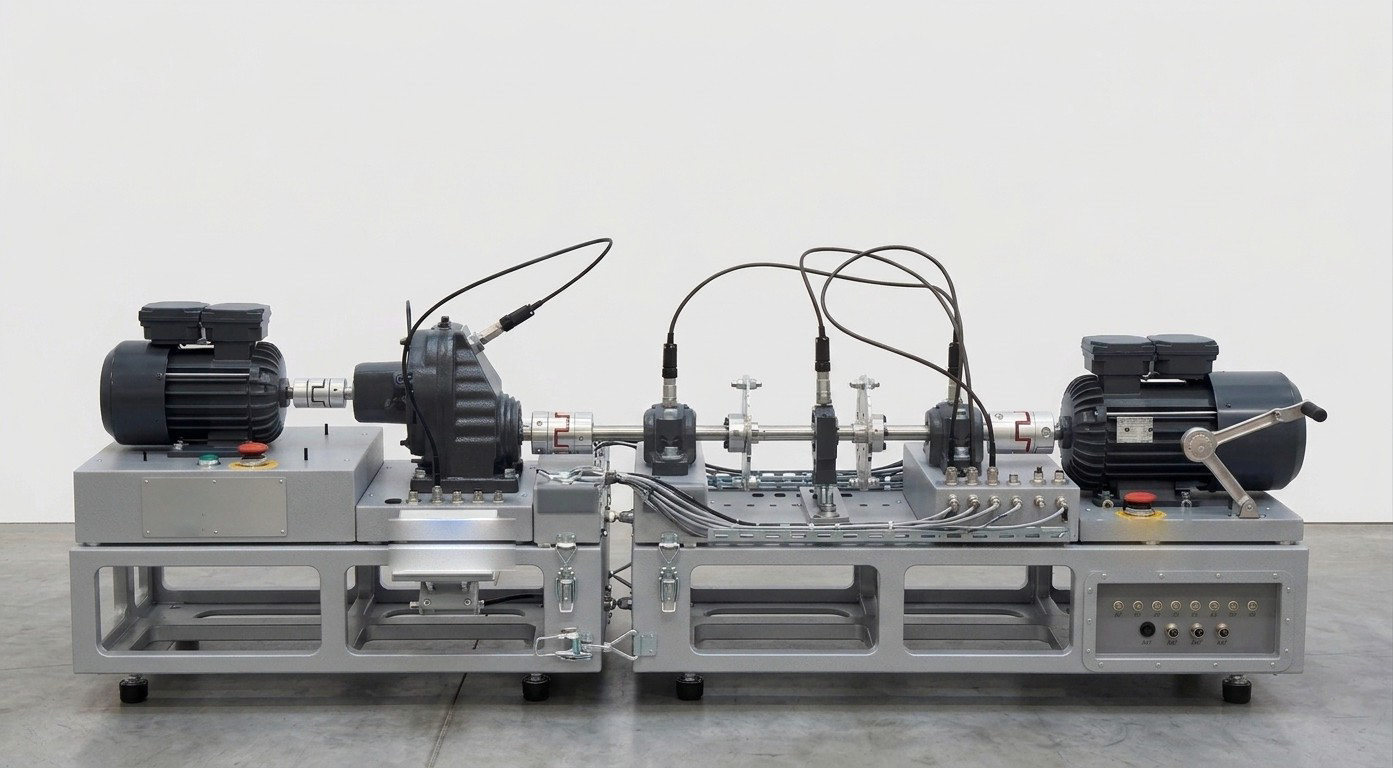

Rotating Machinery Test Rig
SPECIFICATION
| Rotating Machinery Test Rig |
| Rigid steel/aluminum frame with anti-vibration mounts |
| AC induction motor Three-phase AC induction motor Power rating: 0.75–1.5 kW Operating speed: 0–3000 rpm 220–240 V AC Suitable for rotating machinery diagnostics and condition monitoring applications |
| Variable Frequency Drive (VFD) control with connecting cables Industrial VFD with speed control for 0–3000 rpm operation Overload protection Compatible with 0.75–1.5 kW induction motors Complete with shielded power and control cables |
| Shafts Hardened steel rotating shafts 20–30 mm diameter Replaceable shaft sections Precision-machined for alignment and vibration testing |
| Lovejoy coupling with two different bore size for shafts |
| Bearing system in plumber block housing Plumber block bearings, replaceable healthy and faulty bearings |
| Single stage gearbox Single-stage gearbox module with replaceable gears Supports gear mesh vibration analysis and fault simulation |
| Multi-stage gearbox Multi-stage gearbox module for rotating machinery diagnostics Suitable for gear wear, cracked tooth, and transmission fault simulation |
| Accelerometers with connecting cables Wireless ICP piezoelectric Frequency range: 0.5 Hz – 10 kHz Sensitivity: 100 mV/g Mounting: Magnetic or stud-mounted compatible with SKF QuickCollect CMDT 392 and OROS vibration systems Shielded signal cables included |
| Tachometer with connecting cables for RPM measurement Non-contact optical tachometer/encoder for RPM measurement Operating range up to 10 000 rpm Supplied with signal and power cables |
| Data acquisition - DAQ system Condition monitoring DAQ system Minimum 4 simultaneous channels 24-bit resolution preferred Minimum sampling rate ≥25.6 kHz/channel Compatible with ICP accelerometers USB/Ethernet communication Compatible with MATLAB and Python software Supports FFT and time-domain vibration analysis OROS Spectral Diagnostic Toolset for Machine Health Diagnostics including envelope demodulation, cepstrum, shaft analysis and order diagnostics Software compatible with MATLAB and Python software |
| SKF Quick Collect CMDT 392 Bluetooth-enabled SKF Quick Collect vibration and temperature monitoring sensor Compatible with iOS and Android devices Supports external 100 mV/g accelerometers Bluetooth Low Energy 5.0 communication Rechargeable battery Suitable for predictive maintenance and machine condition monitoring |
| Remote thermal camera with connecting cables and monitoring device or software. Industrial infrared thermal camera system for remote temperature monitoring and condition monitoring applications Compatible with PC-based monitoring software Suitable for machinery diagnostics and predictive maintenance applications Supplied with communication and power cables |
