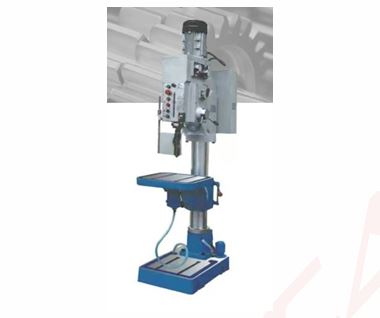

Sensitive drill
Order Code: 25268467.3
Category: General Lab Equipment V
Max. Drilling capacity - 40 Distance between axis of spindle and generating ling of column - 360mm Max. travel of spindle - 180mm Distance from spindle nose to table - 600mm Max. distance from spindle nose...
SPECIFICATION
- Max. Drilling capacity - 40
- Distance between axis of spindle and generating ling of column - 360mm
- Max. travel of spindle - 180mm
- Distance from spindle nose to table - 600mm
- Max. distance from spindle nose to base - 1215mm
- Dia. of column - 160mm
- Spindle Taper - MT-4
- Spindle Speed range - 42-2050r/min
- Spindle speed series - 12
- Spindle feeds - 0.07-0.4(4)
- Dimension of worktable surface (LxW) - 370 X 500mm
- Dimension of base table - 460X 450mm
- Motor power - 2.2Kw
- Coolant pump - 0.085Kw
STANDARD ACCESSORIES:
- 16mm Drill Chuck with Key 1 No.
- Arbor 1 No.
- Necessary tools & Spanners 1 Set
- Instruction Manual 1 No.
- Taper Sleeve Set (MT2-3 & MT3-4) 1 Set
- Drill Drift 2 Nos.
- Safety Guard 1 No.
- Drill Vice (150mm) 1 No.
- Coolant System 1 No.
- Machine Lamp 1 No.
