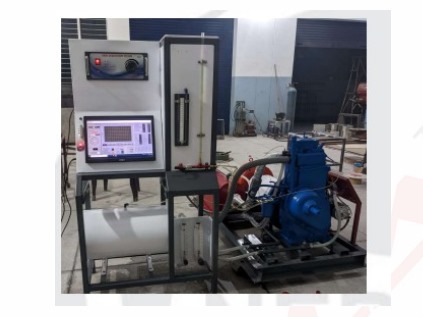

Single Cylinder Four Stroke Diesel Engine Test Bench
Order Code: 25268595.85
Category: General Lab Equipment V
1. Engine Specifications Type: Air-cooled, single-cylinder, four-stroke diesel engine with direct injection Power Output: ~6 HP (4.5 kW) @ 2700 RPM Compression Ratio: 22:1 Bore: 80 mm Stroke: 69 mm 2. ...
SPECIFICATION
1. Engine Specifications
-
Type: Air-cooled, single-cylinder, four-stroke diesel engine with direct injection
-
Power Output: ~6 HP (4.5 kW) @ 2700 RPM
-
Compression Ratio: 22:1
-
Bore: 80 mm
-
Stroke: 69 mm
2. Physical Dimensions
-
Overall Dimensions: 1000 × 800 × 1200 mm
-
Weight: ~280 kg
3. Dynamometer and Control
-
Dynamometer: Eddy current type for engine loading
-
Control System: Manual start and operation; electric motor for speed adjustment
4. Data Acquisition
-
Optional computerized performance analysis software (e.g., "Enginesoft")
-
Real-time data logging and performance evaluation
5. Additional Features
-
Manual control of the engine
-
Calorimeter for measuring exhaust gas heat
-
Enables various experiments, including:
-
Performance tests
-
Heat balance tests
-
