SMPS Trainer

SMPS Trainer

Order Code: 10913

Category: Consumer Electronics Trainers

The SMPS trainer is a very adaptable product that has been designed to explain a very remarkable and frequently used Switching based power supply - The SMPS (Switched Mode Power Supply). The Trainer is designed to understand...

SPECIFICATION

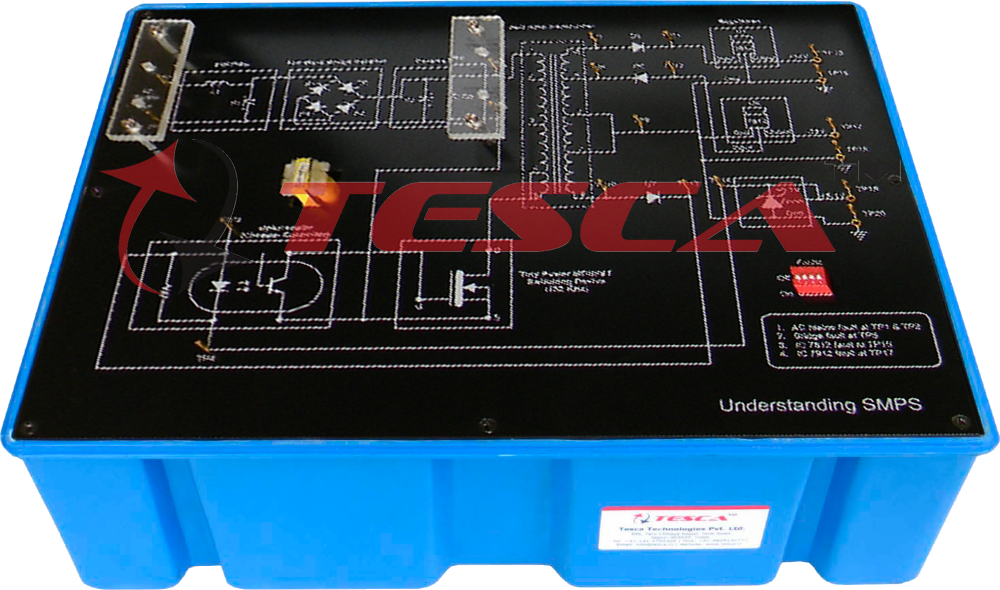

The SMPS trainer is a very adaptable product that has been designed to explain a very remarkable and frequently used Switching based power supply - The SMPS (Switched Mode Power Supply). The Trainer is designed to understand each section of SMPS in straight forward way. Various test points has been provided so that one can observe the inputs and outputs of each block contained. Being different from a conventional block diagram internal structures of different blocks are also shown. Switching Transformer and Chopper (the Heart of SMPS) are also presented to readily understand their operation and pin configuration.

Tecnical Specification:

Input : 80 to 230 VAC ±10%, 50 / 60Hz
Outputs : 12 V DC regulated, : -12 V DC regulated, : 5 V DC regulated
Switching Transformer
Input : 320 V DC switching at 132 KHz
Output : 30 VAC (approx)
Fuse : 500 mA (Slow blow, spare fuse is given with mains socket)
