SSB Amplitude Modulation-
Order Code: 25268469R.26
Category: General Lab Equipment V
Technical Specifications The board is supplied by a stabilized source at +15 V and -15 V about ground. The consumption is not exceed 300 mA for either source in the worst case. Technical features: &nb...
SPECIFICATION
Technical Specifications
- The board is supplied by a stabilized source at +15 V and -15 V about ground.
- The consumption is not exceed 300 mA for either source in the worst case. Technical features:
- The board is include: the DSB modulator, the SSB filter, the additive DSB-SSB demodulator, the low-pass filter, a constant frequency generator and a variable frequency generator for the carrier and a testing tone generator.
- Carrier rated frequency: 470 kHz.
- Power supply: ± 15 Vdc, 300 mA
- With this module it is possible to perform the following exercises:
- Study of DSB modulator
- Study of SSB filter
- Study of demodulator
- Low-pass filter

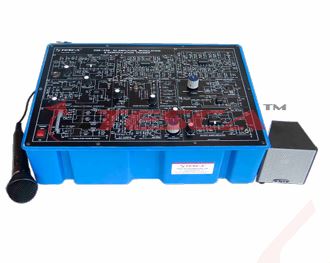

- It is mounted on an insulated didactic module, it show a schematic diagram and 2 mm terminals for the electrical connection
