Steam turbine power lab system
SPECIFICATION
Steam turbine power lab system

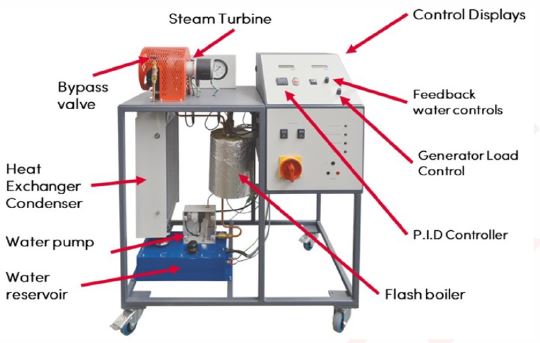

- Electrical powered boiler, steam turbine and condenser, all mounted on a mobile frame.
- The boiler’s efficiency must be measurable.
- Steam must drive a turbine whose generated power is quantifiable through a dynamometer or an alternator.
- The condenser’s efficiency must be measurable.
- Control the power output of turbine by using dynamometer
- Steam turbine power plant must have be able to gather and record the following data:
- Electrical power consumption by oiler for feed water
- Boiler temperature out
- Boiler pressure out
- Turbine inlet and outlet pressure
- Turbine inlet and outlet temperature
- Turbine RPM
- Generator current (amps) output
- Generator voltage output
- Condenser inlet and outlet temperatures
- Condenser inlet pressure
- Software capable of capturing and storing the data listed in requirement #6 must be supplied.
- All software/sensors must come calibrated and ready to use.
- Lab equipment must be no bigger then 65”L x 34”W x 60”H inches
- Lab equipment must not weight more than 500 lbs and can easily be moved by 2 people.
- Power:120 VAC 50/60Hz or 220 VAC single phase 50/60 Hz
- The equipment must be CSA certified or certified to CSA standard SPE-1000
