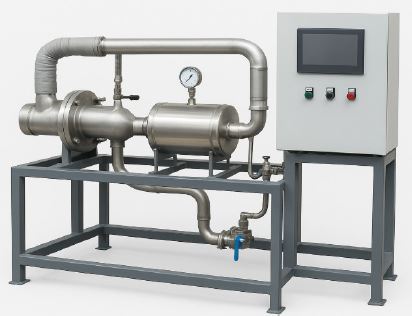

Steam Turbine Test Rig
SPECIFICATION
Steam Turbine Test Rig
Technical Specifications
Application/Test facility
- Steam turbine performance analysis system
- Product Features
- Type: Lab scale
- Dimensions: Industrial lab scale (Main unit: minimum 1200×600×700 mm(L×W×H))
- Construction: Stainless steel Turbine, Powder-coated mild steel Frame, GI piping with insulation
- Steam turbine: Single-stage impulse type, at least 180W rated power capacity
- Seals and bearings: At least 1 carbon ring with at least double bearing
- Steam Generation: Up to 6 bar adjustable, up to 180°C, boiler water
- Capacity at least 5kg/hr
- Data Acquisition: At least 8-inch Touchscreen HMI with DAQ using PLC,with USB PC communication and software analytics,
- Measurement System: speed sensor for turbine, Pressure gauge,
- Temperature sensors at inlet and outlet, Amp meter, Voltmeter, steam mass flow rate
- Boiler: LPG fired water tube type with pressure gauge at outlet and air lock release mechanism
- Enclosure Material: Heavy-duty construction (Stainless steel + powder- coated frame)
- Boiler Type: Electric boiler, Boiler accessories: Steam separator, safety valve and level gauge
Accessories/Spares
- Pressure measurement device
- One set Temperature sensor
