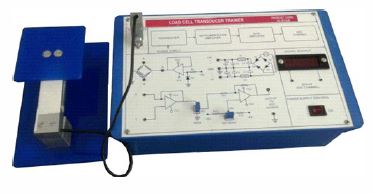

Strain Gauge Transducers Trainer Kit
SPECIFICATION
Strain Gauge Transducers Trainer Kit
Application/Test facility:
- Demonstrates the principle and operation of a strain gauge, with tare adjustment, digital readout, and an ergonomic powder-coated cabinet featuring an acrylic front panel.
Product Features:
- Self-contained and easy to operate
- Sensitive, Linear, Stable & Accurate
- Test-points to observe input output of each block
- Onboard gain adjustment
- Onboard offset null adjustment
- Built in DC Power Supplies
- 3½ digits LED display
- Onboard Cantilever arrangement
- High repeatability and reliability
- Strain Gauge (350?): 4 nos. or more
- Gauge factor: 2.1
- Maximum bearable weight: 500 gm
- Cantilever material: Stainless Steel or better
- Cantilever width: at least 2.5 cm
- Cantilever thickness: at least 0.16 cm
- Cantilever length: at least 20 cm
- Bridge Voltage: +8 V DC
- Bridge configuration: Full Bridge
- Test points: minimum 8 nos.
Accessories/Spares:
- Mains cord
- Standard Weights
- USB cable (optional)
