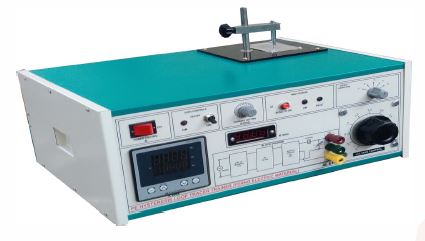

Study of P.E loop of a given Ferroelectric crystal
Order Code: 25269275.3
Category: General Lab Equipment V
Study of P.E loop of a given Ferroelectric crystal
SPECIFICATION
Study of P.E loop of a given Ferroelectric crystal
SCOPE OF LEARNING:
- Hysteresis loss
Technical Specification
- Digital Meter
- Digit Temp. Meter with Control
- Digit Volt Meter
- Digit Ammeter
- AC Power Supply:
- HT power supply (2000Volt) built in the app.
- iFacility to connect CRO provided on the front of the panel.
- Arrangement of sample holder with temperature facility given on the top of the panel.
- 5 nos. of capacitor to control the PE HYSTERESIS CURVE , WHICH ARE INTERNALLY CONNECTED AND CONTROLLED BY THE SLECTOR SWITCH AS GIVEN ON THE TOP OF THE PANEL.
- TEST sample PST and PZT ALSO PROVIDED WITH the apps.
- Control circuit also engraved on lower top panel of the unit.
SAMPLE TYPE:
- PST
- PZT
SALIENT FEATURES:
- Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
- Instruction manual.
- Connections are brought out through 4mm BT15 Terminals.
- The trainer is housed in Wooden cabinet.
- Size of the trainer set 18”x12”
