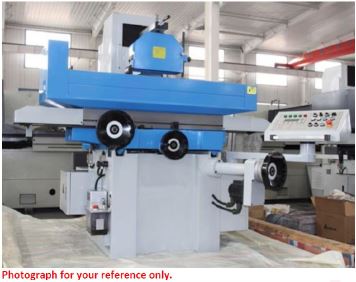

The surface grinding machine shall exhibit the following technical features:
SPECIFICATION

1. Table size (L×W) 406×1020 mm
2. Max. Longitudinal travel - 910 mm
3. Max. cross travel 450 mm
4. Max. distance from spindle center to table-550 mm
5. Magnetic chuck size 400×800 mm
6. Speed of table longitudinal movement-7~23 m/min
7. Table  transverse Movement
8. Auto feed- 0.1~8 mm/min
9. Rapid  speed - 990 mm/min
10. Feed of handwheel - 0.02 mm/div.
11. Wheelhead vertical movement
12. Auto feed--?H/R mode?
13. -0.005/0.1/0.02/0.03/0.04/0.05(Only for D mode) mm/stroke
14. Rapid Speed-?H mode?610 (Only for Rmode) 480 (Only for D mode) mm/min
15. Feed of handwheel - 0.005 mm/div.

Grinding wheel

1. Speed - 50Hz 1450 rpm, 60Hz 1750 rpm
2. (OD×W×ID) Size - Φ350×40×Φ127 mm
3. Spindle motor 5.5 kw
4. Hydraulic motor 2.2 kw
5. Cooling pump motor-0.09 kw
6. Elevating motor
7. H mode) 0.25 (R mode)
8. 0.75 (D mode, servo motor) kw
9. Cross feed motor 0.04 kw
10. Max loading capacity of table(include magneticchuck)-500 kg
11. Total rated power 9 kw
12. Surface roughness Ra?0.25 μm
13. G.w 3600 kg
14. Packing size(L×W×H)-2720×2265×2250 mm

Accessories:

1. Splash guard, 2 axis DRO system, Wheel guard, Electromagnetic
2. chuck (same size as worktable), De-magnetizer, Coolant system,
3. Halogen lamp, Manual & parts list, Overhead wheel dresser

Grinding Work eLearning Software (to be installed on the existing Smart Classroom Server at MIOG)

1. Principles of grinding
2. Introduction to grinding
3. Grinding operations and functions in a machining workshop
4. Grinding machine components and systems
5. Components of a surface grinder
6. Grinding machine movement
7. Work holding in grinding machines

Types of grinding machines

1. Operation of a surface grinder
2. Different types of grinders
3. Variables affecting the grinding operation
