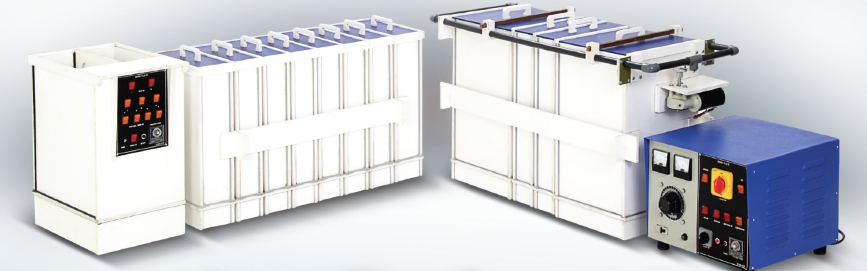

Thru-hole-plating system
SPECIFICATION
Max (Fin) PCB Size : 250 mm x 305 mm (10" x 12")
Process Tanks: 02 Nos. 11.5 Litres each
02 Nos. 6.5 Litres each
06 Nos. 9.0 Litres each
Rinse Stations : 2 Nos. Cascade
Plating Tanks :2 Nos. 33.5 Litres
Rectifier : 0-20 Amps, 0-8 Volts (Continuously Variable)
Mechanical Agitation: With DC Motor for only Electroless tank and Both plating tank
Heaters : 2 Nos. Titanium with thermostat control
Air Agitation :With Pump (Diaphragm Type) for copper plating tank
Timer : Provided
Electrical Power: 230V-50Hz., 15A Socket required
