Torsion Testing Machine .
SPECIFICATION

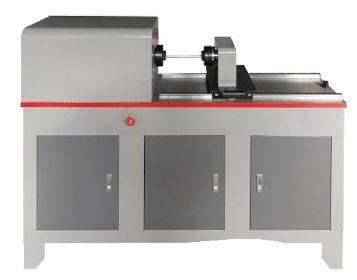

Torsion Testing Machine
Designed primarily for low-capacity (450 µNm - 225 Nm) torsion testing of materials and components, the MT torsion testing systems offer accurate, multi-turn capability, high rotational stiffness, and minimal axial friction. The system torque cell is attached to a movable crosshead, which can be left free-floating or clamped during testing. When left free-floating, the user can apply an axial pre-load to the specimen using a weight and pulley arrangement. Closed-loop servo-control of the electromechanical drive is provided by Control electronics.
Features:
- Dual linear slide design provides high-rotational stiffness and low-axial friction.
- Adjustable crosshead locking system allows crosshead to be free-floating or fixed during testing.
- Interlocked test space enclosure enhances operator safety.
- Digital control electronics allow for accurate and repeatable test results and fast control response for both torque and angle.
- Torsion testing software offers easy test set up, graphical data plots, automatic calculation of desired test results and flexible reporting tools.
- Torque Cell protection device minimizes the chance of over-ranging low capacity torque cells during test set up.
- Optional axial preload assembly applies a constant tensile or compressive load during test.
- Range of low-capacity torque cells are available down to 0.225 Nm (2 lbf-in).
- Designed and sized to easily fit on a lab table top.
