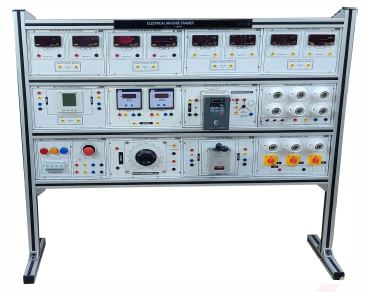

Trainer Board

Key Features

• Electrical AC and DC motor technology laboratory/university trainer consist of following:
• General Purpose : Designed for educational training/Laboratory work covering both AC and DC motors generators.
• Training Content / Experiment: Includes: DC motor (Series, short, separately, compound generators) induction motor: (three-phase squirrel case, wound rotor, single phase motor) synchronous machines: (motors, generators, external /internal characteristics)
• Physical & Mechanical construction : Frame: standard aluminum profile with a two-layer structure.
• Electrical & safety features: Terminals via printed composite panels use 4mm safety sockets. Connectors are sealed/sheathed/pluggable to ensure safety.
• Power supply loads: The trainer includes power supply modules (AC & DC) and resistive loads.

Measurements & instrument: Instruments for voltage, current (AC & DC), tachometer/speed measurement, torque measurement etc.

Techanical Specifications :

• AC Motor (single phase & Three phase): 0.5HP-2HP capacitor start, split phase, squirrel case induction motor.
• DC Motor (Series, short, compound): 0.5 HP-2HP, 220V/110V, 1500RPM.
• DC Power supply unit: O-250V, 5-10A,Variable, Over load protection.
• AC Power supply panel: 3-phase, 415V, 50HZ, With MCB Volt/Amp Meters. *Variable frequeray Drive (VFD): 0.75-2.2KW, Programmable, Digital Display.
• Motor control panel trainer : star-delta starter, DOL starter, For ward-Reverse Switch, contactor, Over load relay.
• MultiMate (Digital &Analog): Voltage, current, Resistance, Continuity Measurement. *Clamp Meter : AC/DC current measurement up to 600A * Tachometer(Digital): contact/Non-contact RPM Measurement.
• Mugger (Insulation Tester): 500V-1000V range
• Starter Trainers : DOL,Star-Delta, Manual & Automatic Types
• Rheostat(load for DC Motors): wire-wound, 100?/5A or equivalent
• Cut-section Motor models : Transparent or oper model
• Wiring board with components: MCB, Relay, Timer, Selector switches, indicators. Oscilloscope: Advanced Version
• Circuit Breakers & Fuses : Miniature, cartridge, HRC etc
• Wiring tools: crimpers, strippers, screwdrivers, soldering kit etc.
