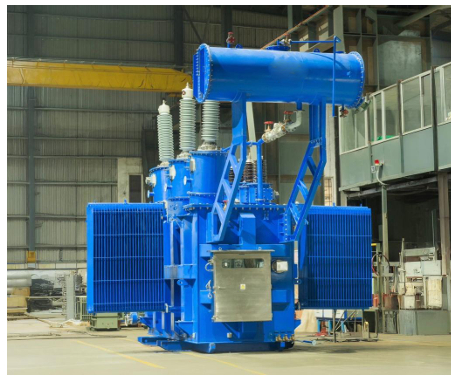

Transformer-distribution
SPECIFICATION
Mounting:
- Pad mounted
Electrical Rating:
- Capacity: 1000 kVA
- Phase: 3 Phase
- Frequency: 60 Hz
Voltage Ratings:
- Primary Voltage (Application): 13.8 kV AC
- Primary Voltage (Actual): 13.8 kV AC
- Secondary Voltage: 400/231 V AC
Tap Settings:
- ±2 × 2.5% above and below normal
Insulation Levels (BIL Ratings):
- Primary BIL: 95 kV
- Secondary BIL: 3 kV
Vector Group:
- Dyn11
Bushings:
- Primary: 4 × Porcelain, Closed type
- Secondary: 4 × Porcelain, Enclosed type
Connections:
- Primary: Threaded stud type
- Secondary: Spade terminals
Cooling Method:
- ONAN (Oil Natural Air Natural)
Standards / Specifications:
- IEC 60076
- 01-SDMS-01
- 51-SDMS-1 Rev 1
Additional Features:
- Cable box type
