Transformer Turns Ratio Tester 1:10,000

Order Code: 19520

Introduction: Ratio testers using manual ‘current measuring bridge' circuits are now out dated. 19520 is a new, fully automatic tester that measures transformation ratio of single phase and three phase transformers using mod...

SPECIFICATION

Introduction:

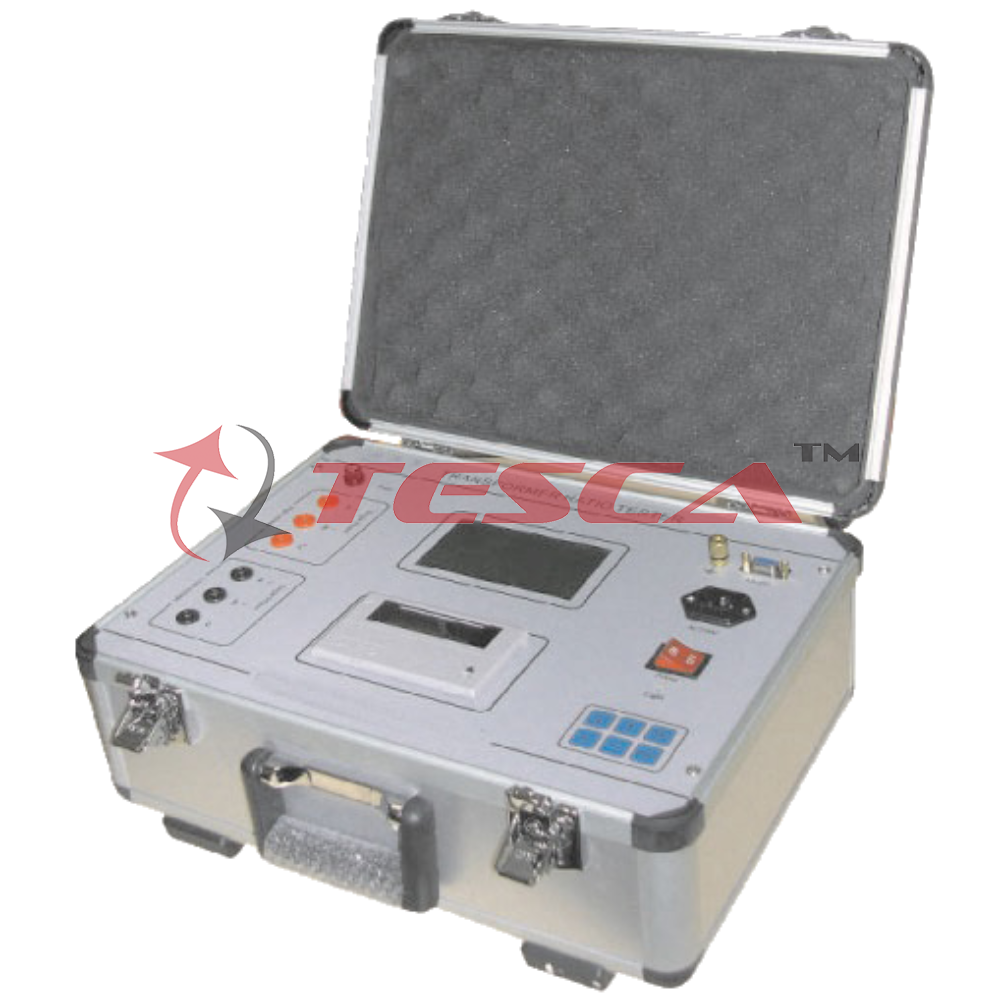

Ratio testers using manual ‘current measuring bridge' circuits are now out dated. 19520 is a new, fully automatic tester that measures transformation ratio of single phase and three phase transformers using modern electronic techniques. 19520 is micro controller operated user friendly, accurate, reliable, small, light weight and reliable tester. 19520 incorporates a large LCD screen for display of menu and results. The results can be stored & printed on built-in printer after the test is over. 19520 incorporates breakthrough technology and design that gives accurate and reliable results, again and again.

Safety Features
Automatic cutoff after test
Saves 30 test results
Meets specs of IEC 60076
Fuse protection for line short circuit
Fuse and reset protection for reverse connection of HV and LV winding

Description:
Description: 19520 is a new generation, fully automatic, transformer turns ratio tester designed for measuring ratio, ratio error of single and three phase transformers. The entire test is done automatically and quickly. Operator enters the test parameters and 19520 takes over; powers up the voltage, balances the bridge, takes the readings, and displays the results on the LCD screen. Prints test results through its built-in printer. A key feature of the 19520 is automatic measure transformer connection group. LV and HV windings are automatically isolated once the measurement is over. True portability is achieved by the lightweight (only 10 kg), single unit design housing the 19520. The 19520 is encased in an aluminum alloy cabinet.
