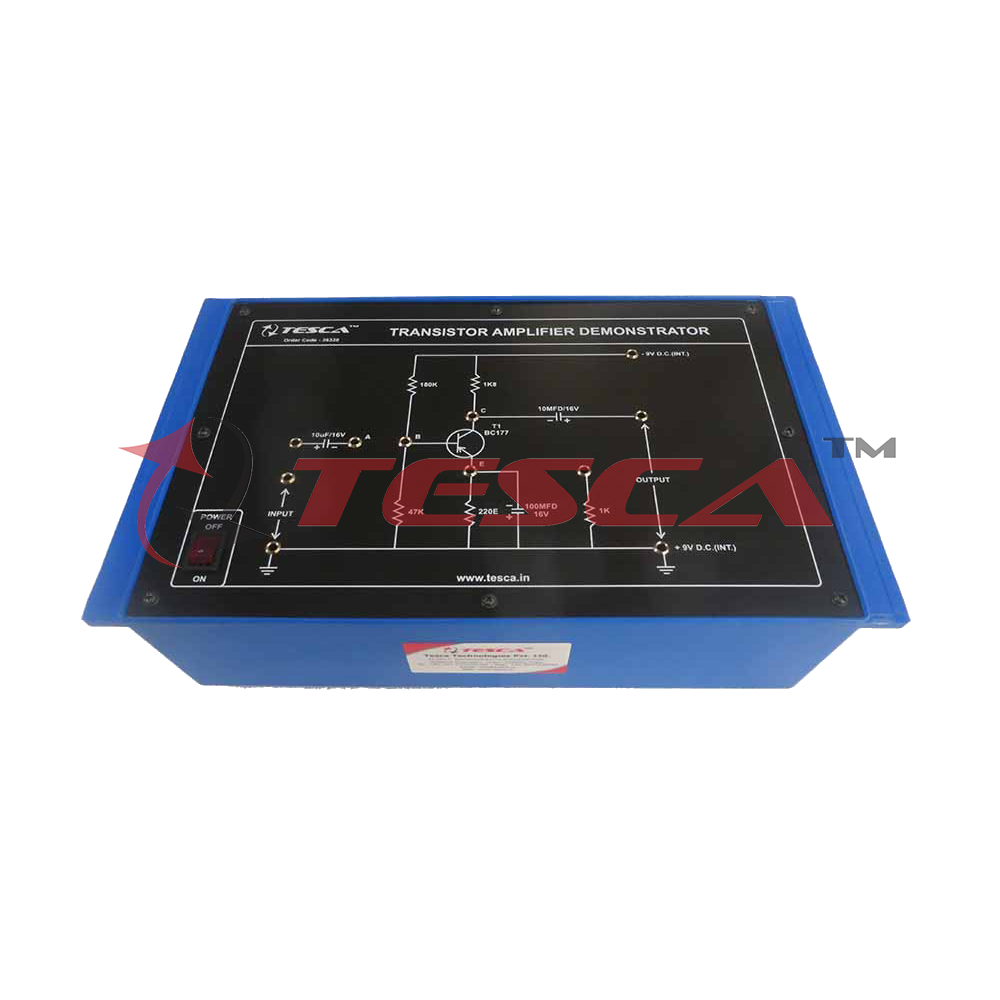

Transistor Amplifier Demonstrator
Order Code: 22235810.23
Category: General Lab Equipment I
Experimental Training Board has been designed specifically for the study of voltage gain, frequency response, input impedance, output impedance, current gain, Power gain of a Common Emitter (CE) Transistor Audio Amplifier. Features: St...
SPECIFICATION
Experimental Training Board has been designed specifically for the study of voltage gain, frequency response, input impedance, output impedance, current gain, Power gain of a Common Emitter (CE) Transistor Audio Amplifier.
Features:
- Study of Transistor Audio Amplifier (CE) :
- To measure the Voltage Gain.
- To plot the Frequency Response characteristics.
- To find out the Input Impedance.
- To find out the Output Impedance.
- To find out the Current Gain.
- To find out the Power Gain.
Technical Specification:
- The board consists of the following built-in parts :
- -9V D.C. at 50mA, IC regulated Power Supply internally connected.
- PNP transistor.
- Adequate no. of other electronic components.
- Mains ON/OFF switch, Fuse and Jewel light.
- The unit is operative on 230V ±10% at 50Hz A.C. Mains.
- Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length 50cm.
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
- Weight : 3 Kg. (Approx.)
- Dimension : W 340 x H 125 x D 210
