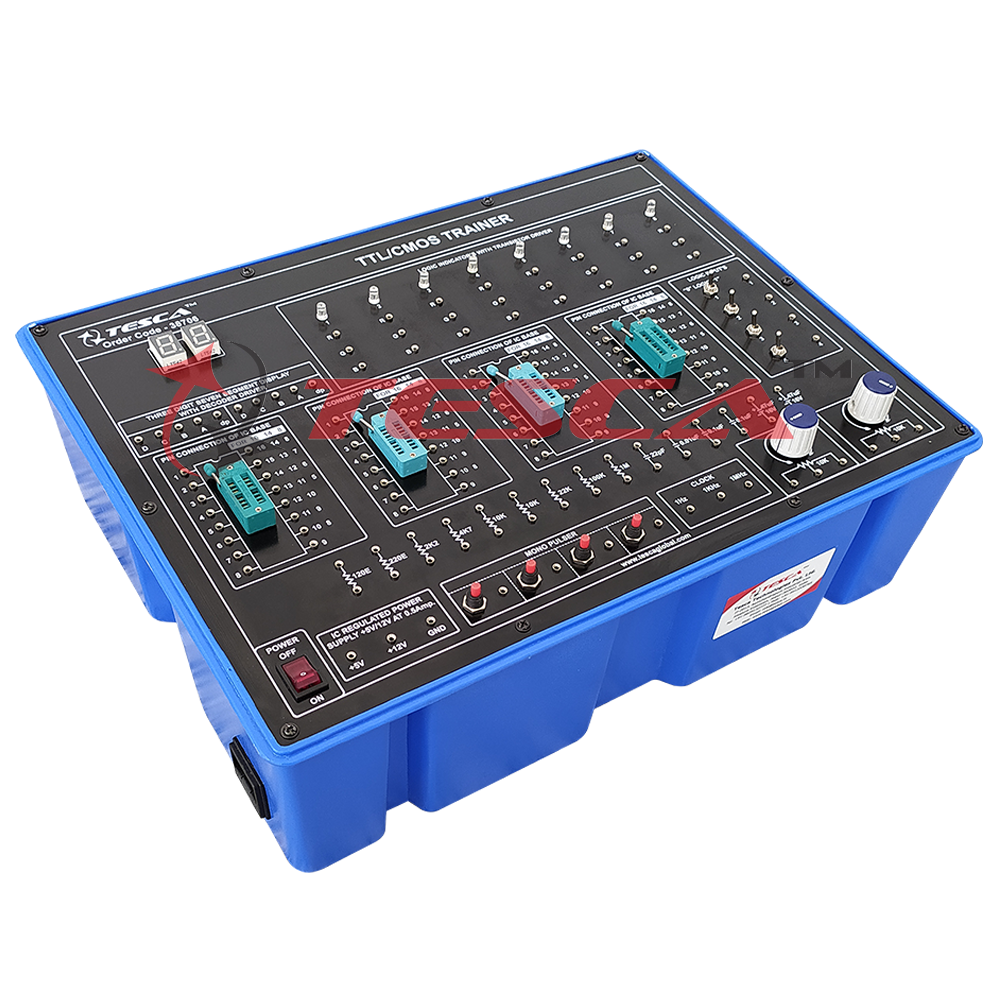

38706 TTL-COMS Trainer has been designed specifically for the study of Digital IC Circuits. TTL-COMS Trainer is a completely self contained, most versatile, sophisticated and economical. The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.

SPECIFICATIONS

1. + 5V & 12V DC at 0.5Amp, IC Regulated Power Supply.
2. Four , two position toggle switches prewired to give binary logic input states.
3. Eight RGB LED logic indicators with transistor drivers.
4. Two digit Seven Segment Displays with decoder driver and provision to take-out output for monitoring.
5. Clock Generators Fixed : (a) 1Hz ( b) 1KHz. © 1MHz (Simultaneous independent outputs ).
6. Four Single pulse from mono pulser.
7. IC BASE16 Pin 4 No. gold/silver plated Zero. Insertion Force (ZIF) dual in line Package (DIP) on Front Panel.
8. Components Provided : ICs-555/1, 4001/1,4008/1, 4011/1, 4013/1, 4018/1, 4027/1, 4045/1, 4098/1, 7400/1, 7402/1, 7404/1, 7407/1, 7408/1,7411/1, 7432/1, 7472/1, 7473/2, 7480/1, 7486/1, 7489/1, 7490/3, 7493/1, 7496/1, 74121/1 74181/1, 74194/1 total = 30
9. Accessories : Mains cord, Operating and Experimental manual, Red & Black patch cords 18 each
10. Instruction manual : Strongly supported by detailed operating instructions.
11. Wiring of all types of experiments become simple and less time consuming.
12. Adequate no. of other Electronic Components.
13. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
14. Weight : 4.700 Kg. (Approx.)
15. Dimension : W415 x H165 x D 315.

THE TRAINER COVER THE FOLLOWING EXPERIMENT LOGIC GATES
01  AND GATE (DIODE & TTLLOGIC)
02  OR GATE (DIODE LOGIC)
03  NAND GATE (TTL)
04  NOR GATE (TTL)
05  NOTGATE (TTL)
06  EXCLUSIVE - OR GATE (TTL)
BOOLEAN ALGEBRA
07  TO PROVE BOOLEAN THEOREMS A+ = 1
08  TO PROVE BOOLEAN THEOREM A+ A. B = A
TO PROVE DEMORGAN'S THEOREMS
09    A + B = A . B
10    A . B = A +B
MONOSTABLE (TTL)
11  NEGATIVE EDGE TRIGGERED MONOSTABLE
12  SCHMITTTRIGGER
FLIPFLOP(TTL)
13  RS FLIPFLOP
14  CLOCKED RS FLIPFLOP
15  J. K. FLIP-FLOP
BINARY COUNTERS (TTL)
16  BINARY RIPPLE COUNTER
17  SYNCHRONOUS COUNTER
DIVIDE BY N COUNTER
18  DIVIDE BY6 COUNTER USING 7493 IC
19  DIVIDE BY60 COUNTER USING 7493 AND 7490 IC'S
20  RING COUNTER
FULL & HALF ADDERS (TTL)
21  HALF ADDER
22  FULLADDER
SUBTRACTORS & ARITHMETIC LOGIC UNIT (TTL)
23  HALF & FULLSUBTRACTOR
24  ARITHMATIC LOGIC UNIT
REGISTERS (TTL)
25  SHIFT REGISTER CONSTRUCTED FROM MASTER SLAVE JK FF
26  5 BIT REGISTER (USING 7496)
27  UNIVERSALSHIFT REGISTER
MEMORIES (TTL)
28  ORGANISATION OF RAM / IC 7489 - RAM
29  ROM (READ ONLY MEMORY)
EXPERIMENT OF CMOS DEVICES
30  NAND CMOS
31  NOR CMOS
32  BOOLEAN ALGEBRA(CMOS)
33  ASTABLE MULTIVIBRATOR & SCHMITT TRIGGER WITH ADJUSTABLE TRIGGERING (CMOS)
34  MONOSTABLE MULTIVIBRATOR (CMOS)
35  FLIPFLOPS (CMOS)
36  HALF & FULLADDER (CMOS)
37  PRESETTABLE DEVIDE-BY-N COUNTER (CMOS)
38  BINARYTO DECIMALCONVERSION
39  3 DIGITSTROKE COUNTER USING IC 7490
40   ACCURATE TIMER USING BELCD 4045 & CD 4013
41   MONOSTABLE OPERATION USING IC 555 TIMER
42   ASTABLE OPERATION USING IC 555 TIMER
43   FREQUENCY MODULATION USING IC 555 TIMER
44   SQUARE WAVE GENERATOR USING IC 555 TIMER
