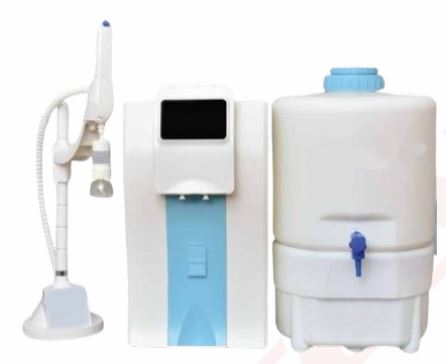

Ultra-pure water purification system

1. An ultrapure water purification system is used to produce water of the highest purity for highly sensitive and critical applications, such as High-Performance Liquid Chromatography (HPLC), mass spectrometry, and mammalian cell culture.
2. The water's purity is essential to prevent contamination from trace impurities that could compromise experimental results and lead to inaccurate or unreliable data
3. Main Specifications- High quality Prefilter with Low pressure switch cuts off system which can able to take care high TDS up to 5000 ppm and high SDI up to 50 having 5 Micron and 1 Micron with DC diaphragm pump to boost water pressure from 0 to minimum 2.5 bar at approximately 120 L/Hr with noise levels of Less than 50 Db.
4. Two separate units should be there for Type-I and TYPE II systems.
5. In the type II system the Conductivity: < 2000 μS/cm, Fouling Index (SDI): upto 12, Free Chlorine: upto 3 ppm
6. RO pressure, RO water quality, RO membrane efficiency (% ion rejection) should be seen on display
7. Inbuilt Pretreatment Cartridge- 0.5 Micron filter, anti-scaling compounds and RFID tag must be there not as a optional.
8. Pre-treatment pack contains silver-impregnated activated carbon which prevents the proliferation of Bacteria present in tap water; anti scaling compounds must to eliminate hardness and protect the RO membrane against oxidation, scaling and plugging.
9. RFID Tag- for Traceability of pretreatment cartridge and every Liter throughput water volume should be seen on computer when connected thought LAN.
10. Date of installation also be seen on computer.
11. EDI: technology based on anion-permeable and cation permeable membranes; high-quality ion-exchange resins and activated carbon beads.
12. RO reject water recovery- up-to 50 % before and after RO conductivity cell to know the % rejection RO so that performance of RO can be seen in the display.
13. 3 Way solenoid Valve- RO permeate is diverted to drain until the quality meets expectations. No. of Recovery loop – 1 Nos in type II system to save wastage of reject water.
14. Cylindrical tank Capacity minimum 50 Liter.
