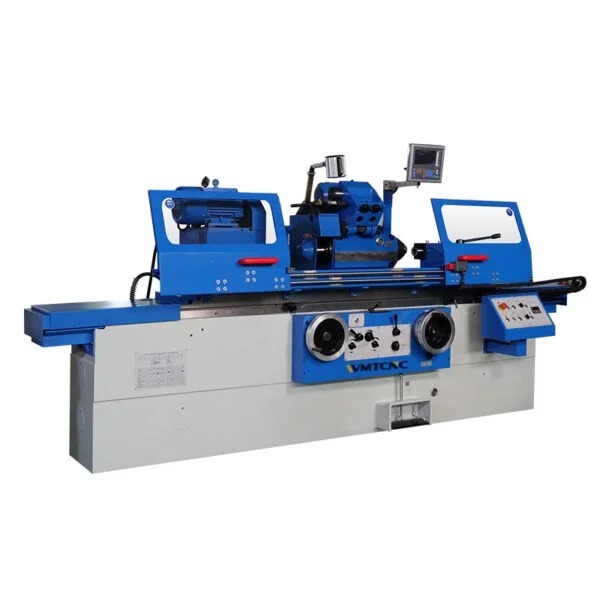

Universal Cylindrical Grinding Machine
Order Code: 25268523G.22
Category: General Lab Equipment V
Height between points: 180 mm Distance between centers: 800 mm Maximum part diameter: 320 mm Maximum rectifiable length: 1000 mm Longitudinal travel: 1000 mm Grinding wheel stroke: 245 mm Table fe...
SPECIFICATION
-
Height between points: 180 mm
-
Distance between centers: 800 mm
-
Maximum part diameter: 320 mm
-
Maximum rectifiable length: 1000 mm
-
Longitudinal travel: 1000 mm
-
Grinding wheel stroke: 245 mm
-
Table feed: 0.1 to 4 m/min
-
Part speed: 6 speeds (300 to 1400 rpm)
-
Grinding wheel speed: 10,000 rpm (inside), 1670 rpm (outside)
-
Grinding motor power: 5.5 kw
-
Spindle motor power: 0.75 kw
-
Hydraulic motor power: 0.75 kw
-
Engine power lubrication: 0.12 kw
-
Spindle orientation to the right: 10°
-
Spindle orientation to the left: 90°
-
Table orientation: +3° / -7°
Standard Equipment:
-
3-jaw concentric chuck
-
60 mm fixed bezel
-
Fixed spindle tip
