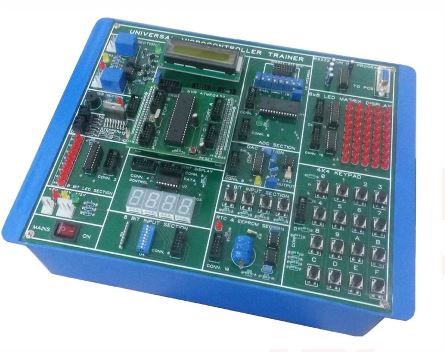

Universal Embedded Trainer (Advance) Supports different microcontroller daughter boards like 8051, PIC, AVR, ARM7

Order Code: 26279676.15

Category: General Lab Equipment V

Universal Embedded Trainer (Advance) – Supports different microcontroller daughter boards like 8051, PIC, AVR, ARM7



SPECIFICATION

Universal Embedded Trainer (Advance) – Supports different microcontroller daughter boards like 8051, PIC, AVR, ARM7

  1.  On Board USB interface for downloading and communications (using FT232B)
  2.  RS232 serial port for the user design
  3.  On board Toggle switch for selection: Downloading program via Serial port / USB Port
  4.  On Board 8 channel ADC with potentiometers for giving input
  5.  On Board DAC Chip
  6.  On Board 16*2 LCD Display
  7.  On board provision for interfacing 128x64 Graphical LCD
  8.  On Board 4 seven segment Display
  9.  On Board 4 X 4 Key Matrix
  10.  On Board 8 LED Outputs
  11.  On Board Two Relays (220V)
  12.  On Board Two Opto Isolated Inputs
  13.  On Board Stepper Motor Controller Driver
  14.  On Board DC Motor Controller
  15.  On Board Serial EEPROM 24C04
  16.  On Board Thermistor Temperature sensor
  17.  On Board LDR sensor
  18.  On Board Buzzer output
  19.  On board interface for servo motor
  20.  On board 8x8 DOT LED Matrix interface
  21.  On board RTC-1307
  22.  On board SPI Eprom 25C040
  23.  On board Temperature Sensor DS1820
  24.  On board PS2 interface
  25.  On board 8 dip switches for input
  26.  On Board Amplifier for sensors like RTD, Load cell and Thermocouple
  27.  Built in Power Supply: +5V, +12V & -12V
  28.  Input/output pins of various peripherals distributed through 4 pin male connectors only for better usability and reliability
  29.  Enclosed in an ABS Plastic Box with cover for protection against dust
  30.  Supplied with User Manual, Connecting wires, USB cables & CD with Sample programs, Data Sheet & necessary Software
