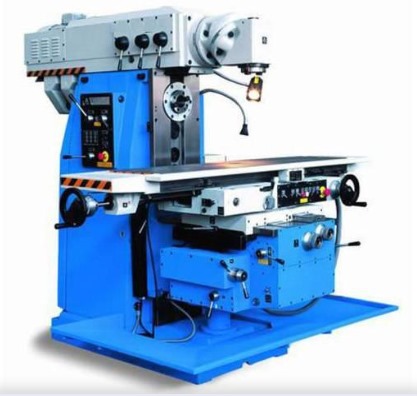

Universal Milling Machine 25 mm
Order Code: 25268523G.17
Category: General Lab Equipment V
Drilling Capacity: 25 mm Milling Capacity: 25 mm Table Size: 1120 × 260 mm (min) Max Spindle to Table Distance: 400 mm (min) Motor Power: 2200 W Power Supply: 400V / 50Hz Max Surfacing Capac...
SPECIFICATION
-
Drilling Capacity: 25 mm
-
Milling Capacity: 25 mm
-
Table Size: 1120 × 260 mm (min)
-
Max Spindle to Table Distance: 400 mm (min)
-
Motor Power: 2200 W
-
Power Supply: 400V / 50Hz
-
Max Surfacing Capacity: 100 mm (min)
-
Gooseneck (Throat): 610 mm (min)
-
Longitudinal Stroke (X-axis): 600 mm (min)
-
Transverse Stroke (Y-axis): 270 mm (min)
-
Vertical Stroke (Z-axis): 400 mm (min)
-
Spindle Taper: ISO 40
-
Speed Range: 45 to 1660 rpm
-
Number of Speeds: 11 (min)
-
Head Orientation: 360°
Main Accessories Included:
-
Steel Milling Vice
-
Jaw Width: 160 mm
-
Opening: 120 mm
-
Total Height: 150 mm
-
Adjustable base graduated through 180°
-
-
Collet Holder
-
Collet Set (Diameters: 4, 5, 6, 8, 10, 12, 14, 16 mm)
-
Tightening Tie Rod
-
2 End Mill Shafts with Support
-
Allen Keys: Sizes 5, 6, 8, 10, 12
-
Flat Spanners: 8/10, 17/19, 22/24 mm
-
Machine Anchor Rods (Qty: 4) with Nuts and Washers
