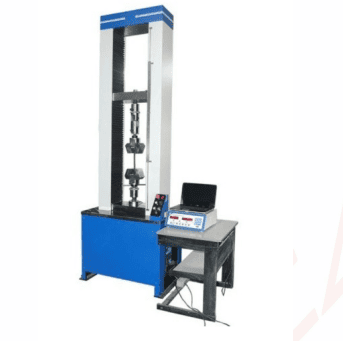

UNIVERSAL TESTING MACHINE (UTM)

Order Code: 25268459.1

Category: General Lab Equipment V

Main Unit: Model Type: Floor-standing design Configuration: Dual or quad-column Universal Testing Machine (UTM) Rated Load Capacity: Up to 50 kN Safety Mechanisms: Dual mechanical limit stoppers (upper and lo...



SPECIFICATION

Main Unit:

  • Model Type: Floor-standing design

  • Configuration: Dual or quad-column Universal Testing Machine (UTM)

  • Rated Load Capacity: Up to 50 kN

Safety Mechanisms:

  • Dual mechanical limit stoppers (upper and lower) to prevent crosshead overtravel, protecting the machine from damage.

  • Integrated safety features ensure user protection during operation.

Emergency Controls:

  • Dedicated emergency stop buttons to immediately halt the system during critical situations.

Drive System:

  • AC servo motor-driven loading mechanism for precise load application.

Column Spacing:

  • Minimum 400 mm

Crosshead Travel Clearance:

  • Minimum 900 mm

Test Space Dimensions:

  • Tension Test: Minimum 700 mm

  • Compression Test: Minimum 850 mm

Power Requirements:

  • Compatible with Malaysian standards:

    • Input: AC 220V, 50Hz / 60Hz

Testing Machine Control System:

  • Maximum Load Testing Capability:

    • Full-rated capacity of 50 kN at maximum test speed.

  • Load Cell Specifications:

    • Type: Tension and Compression

    • Capacity: Up to 50 kN

    • Compliance:

      • ASTM E4

      • BS 1610

      • ISO 7500-1

      • DIN 51221

      • Or other relevant international standards.

  • Strain Measurement Standards Compliance:

    • ASTM E83

    • ISO 9513

    • BS 3846

    • EN 10002-4

    • Or other equivalent standards.

  • Ease of Use:

    • Quick-install mechanism for easy attachment and removal of the load cell.

  • Testing Speed Range:

    • Minimum speed: 0.1 mm/min

    • Maximum speed: 300 mm/min

  • Calibration Accuracy:

    • ±0.5% calibration accuracy.

Interface & Control:

  • USB communication interface for PC connection (force, displacement, and deformation control via closed-loop USB communication).

Force Monitoring Safety:

  • Auto-stop function: Stops automatically if test force variation exceeds specified limits.

Remote Operation:

  • Supplied with standard remote control for convenient operation.

Data Processing Software:

  • Platform Compatibility: Microsoft Windows-based application.

  • License: Permanent license with free future updates and upgrades.

Test Capabilities:

  • Supports Tension, Compression, Bending, and additional UTM-specific tests.

User Interface:

  • Quick test method access for fast operation.

  • Multi-language support (English required).

Result Management:

  • Auto-save function for all test data.

Testing Standards:

  • Supports standards such as GB, ASTM, DIN, JIS, BS, and other international standards.

Reporting:

  • Exportable to Excel, Word, and PDF formats.

  • Customizable report templates that can include:

    • Operator name

    • Testing standard

    • Test curve

    • Maximum load

    • Other relevant test data

Data Processing:

  • Real-time and automatic analysis with a graphical interface for easy comparison of test results.

Testing Tools & Accessories:

  1. Tension Test Grips:

    • Grip Capacity: Up to 50 kN.

    • Grip Faces (Flat Specimens):

      • 0–7 mm thickness

      • 7–14 mm thickness

    • Grip Faces (Round Specimens):

      • 4–9 mm diameter

      • 9–14 mm diameter

  2. Compression Test Grips:

    • Grip Capacity: Up to 50 kN.

    • Plate Diameter: Minimum 70 mm.

  3. Bending Test Jig:

    • Type: Three-point bending test jig.

    • Capacity: Up to 50 kN.

  4. Standard Extensometer:

    • Application: Metal materials.

    • Gauge Length: Up to 60 mm.

  5. Long Travel Extensometer:

    • Application: Non-metallic materials.

    • Gauge Length: Up to 30 mm.

Specimen Samples (Included):

  • Mild Steel Test Samples:

    • Flat Samples: 10 pcs (3 mm thickness)

    • Round Samples: 10 pcs (5 mm diameter)

Summary:

This Universal Testing Machine (UTM) is a comprehensive testing solution suitable for conducting a wide range of mechanical tests on materials. With a load capacity of 50 kN, it is ideal for tension, compression, and bending tests. The system offers high accuracy, easy operation, and remote control features. The included accessories and advanced data processing software ensure precise, reliable, and efficient test results, meeting international standards like ASTM, BS, and ISO.
