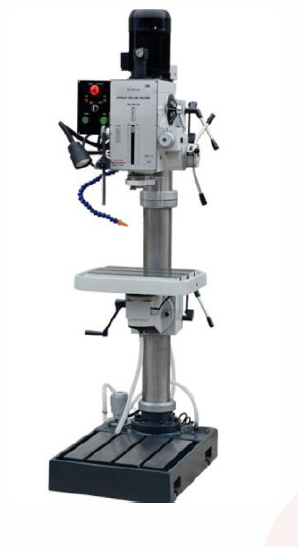

Upright drilling machine
Order Code: 25268466.2.4
Category: General Lab Equipment V
Max.drilling capacity 32mm Spindle taper M.T.4 Spindle travel 130mm Step of speed 6 Range of spindle speed 50Hz 80-1250 r.p.m 60Hz 95-1500 r.p.m Step of spindle auto-feeding 6 Min.distance from spindle axis to column 283mm Max...
SPECIFICATION
Max.drilling capacity 32mm
Spindle taper M.T.4
Spindle travel 130mm
Step of speed 6
Range of spindle speed 50Hz 80-1250 r.p.m
60Hz 95-1500 r.p.m
Step of spindle auto-feeding 6
Min.distance from spindle axis to column 283mm
Max.distance from spindle nose to worktable 700mm
Max.distance from spindle nose to stand table 1125mm
Max.travel of headstock 250mm
Swivel angle of headstock(horizontal) 360°/±45°??
Max.travel of worktable bracket 600mm
Worktable size of avaliablity 380×300mm???
Swivel angle of table horizontally 360°
Size of stand worktable of avaliability 417×416mm???
Motor power 0.75KW
Voltage/Frequency As customer's requirement
speed of motor 1400 r.p.m
