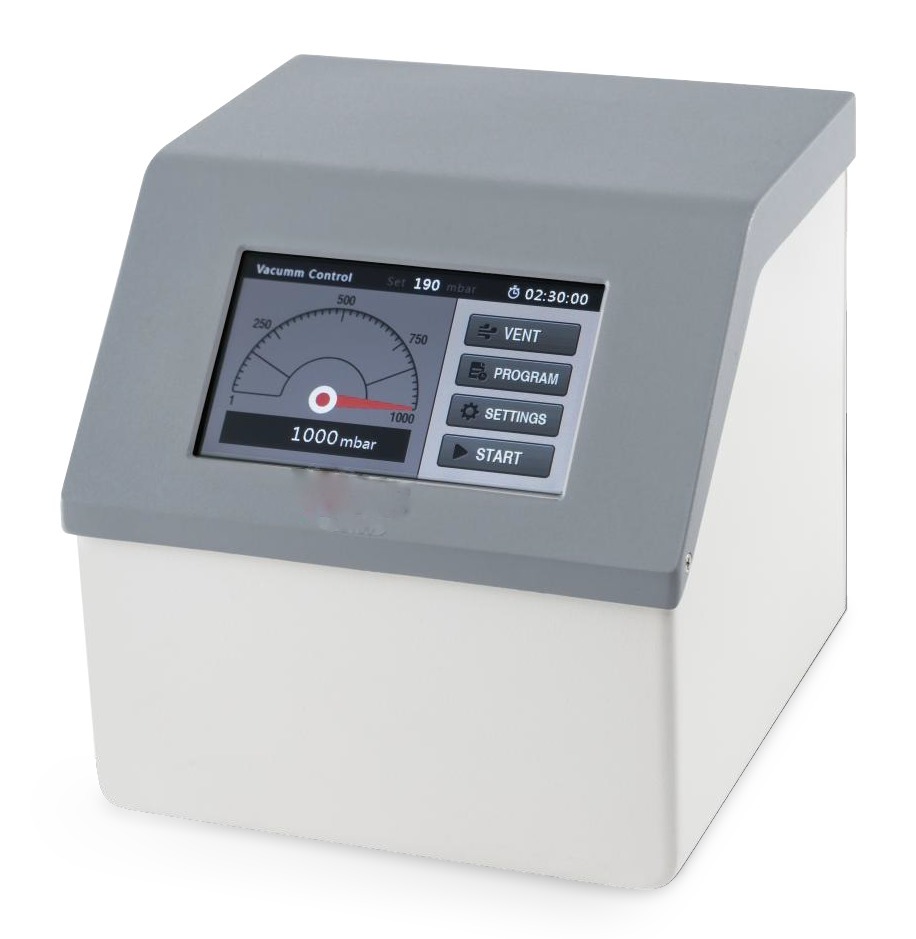

SPECIFICATION
Vacuum Setting Range: 1–1,000 mbar
Vacuum Measurement Range: 1–1,000 mbar
Control Mode: Single-point control / Programmed control
Control Program: Up to 5 programs, each with up to 5-step control (vacuum level and time settable per step)
Setting Method: Touch screen
Display: 5'' TFT
Sensory Overload Pressure: 1,500 mbar
Connector Diameter: 8 mm
Materials in Contact with Vapor: PTFE, PP, silicone, and ceramics
Power: 600 W
Compatible Vacuum Pump: ≤500 W (60 Hz)
Dimensions (W × D × H): 189 × 207 × 193 mm
Voltage / Frequency: 110–240 V, 50/60 Hz
Operating Environment: 10–40 °C, ≤80% RH
Special Conditions/Requirement:
Key Parameters and Minimum Specifications
5 L heating bath
Evaporating Flask Volume: 50–3000 mL
Motor Type: Brushless DC motor
Speed Range: 20–280 rpm
Direction of Rotation: Clockwise and counterclockwise
Display: LCD (speed, temperature, time)
Heating Temperature Range: Room temperature to 180 °C.
Control Accuracy: Water ±1 °C / Oil ±3 °C.
Evaporation Capacity: Max. 1.56 L/h (H?O).
Heating Power: 1300 W
Condenser Cooling Surface: 1700 cm²
Lift Stroke: Motorized 150 mm
Overheating Protection: 220 °C
Timer / Time Setting Range: Yes / 1–999 min
Sealing: Double spring PTFE sealing ring
Voltage / Frequency: 200–240 V, 50/60 Hz, Total Power: 1400 W.
Dimensions (D × W × H): 465 × 457 × 583 mm.
Permissible Ambient Temperature: 5–40 °C, Permissible Relative Humidity: 80% RH.
