SPECIFICATION

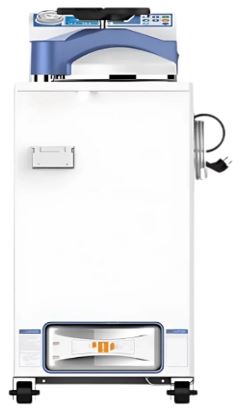

Vertical Autoclave
- Brand New Vertical Autoclave
- Application: autoclave sterilizer is designed with conventional, established mechanical engineering for clinics and institutions and used for sterilizing items using high-pressure steam, making it ideal for smaller loads, liquids, media, glassware, and taller items that need to remain upright during the process.
Technical Specification:
- Dimensions (W × H × D) mm: 600 × 1090 × 450 (±50mm)
- Capacity: Min. 50L
- Chamber Size (Diam x Depth) mm: Ø 300 × 710 (±10mm)
- Designed Pressure: Approx. 0.23MPa
- Sterilization Temperature: Min. 118°C ~ Max. 134°C
- Control System: Mechanical engineering
- Sterilization time: Min. 0 – Max. 60 min
- Dry time: Min. 0 – Max. 60 min
- Chamber Material: Stainless steel
- Per cycle (cc): 800-1000
- Power Supply: AC 220V-240V
- Include UPS: at least 5KVA
Requirement:
- Standard and Compliance: ISO 9001:2015, ISO 13485 or equivalent.
- Supplier Requirement Experiences: at least 5 years.
- Language: English language available on machine and manual.
- Warranty: At least 2 years on Mechanical, Electrical parts and Services.
- Include Installation and Training:
- • On-site installation performed by certified technicians.
- • User training covering equipment, full operation, maintenance, (minimum 1 full training session) at least 2 trainees.
- • Provision of training materials, including user manuals
