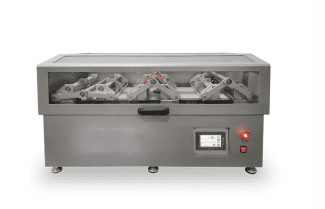

Whole sole flexing machine
Order Code: 25268451.2.2
Category: General Lab Equipment V
Sole Flexing Resistance Tester Application: Used to evaluate the flexing resistance and durability of outsoles, particularly under simulated walking conditions. The machine flexes the sole at a specified angle and speed, helping determine the pot...
SPECIFICATION
Sole Flexing Resistance Tester
Application:
Used to evaluate the flexing resistance and durability of outsoles, particularly under simulated walking conditions. The machine flexes the sole at a specified angle and speed, helping determine the potential for cracking or damage under repeated stress. Compliant with ISO 17707:2012.
Key Specifications:
| Parameter | Details |
|---|---|
| Test Clamp Positions | Minimum 3 test places |
| Flexing Frequency | 140 flexes/minute |
| Bending Angle | 90° |
| Flexing Mode | Vertical type |
| Bending Speed | Adjustable between 125–150/min |
| Mandrel Diameter | 30 mm ± 0.1 mm |
| Clamp Width | 144 mm |
| Contemporary Testing | 3 samples simultaneously |
| Counter | LCD display, range: 0 – 999,999 |
| Sole Flexibility Tester Range | 0 – 50 N |
Accessories Included:
-
Chisels (Cutting Tools):
-
Quantity: 2 pcs
-
Use: For piercing the outsole
-
Dimensions: As per ISO 17707:2012
-
-
Mandrels:
-
Quantity: 2 pcs
-
Diameter: 30 ± 0.1 mm
-
-
Magnification Tools:
-
2 pcs of Optical Magnifier or Traveling Microscope
-
Graduated probe with optical magnifier
-
Accuracy: 0.1 mm
-
-
Spare Parts Kit:
-
Includes all necessary maintenance tools
-
Set of Allen keys provided
-
