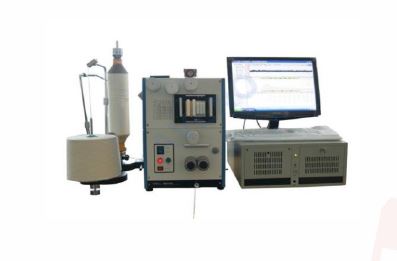

Yarn evenness tester with accessories
Order Code: 25268654.2.39
Category: General Lab Equipment V
Purpose Measures the evenness and quality of yarns, including variations in thickness, impurities, and defects. Specifications Capacitance Detecting Trough: 4 Test Range: 4 tex - 12,000 tex Evenness Test Speed Options: 4 m/min ...
SPECIFICATION
Purpose
- Measures the evenness and quality of yarns, including variations in thickness, impurities, and defects.
Specifications
- Capacitance Detecting Trough: 4
- Test Range: 4 tex - 12,000 tex
- Evenness Test Speed Options:
- 4 m/min
- 8 m/min
- 25 m/min
- 50 m/min
- 100 m/min
- 200 m/min
- 400 m/min
- 800 m/min
Test Time: Freely set between 10 seconds to 20 minutes
CV%, U% Value Range: 0.2% - 100%
Length-Curve Cutting Length: 1 cm - 1,500 m
Line Density Distribution:
- -100% to +100%
- +100% to +400%
Dr% Values Output:
- DR (1m, +5%)
- DR (1m, -5%)
- DR (20cm, +35%)
- DR (20cm, -30%)
- 4dr%
A Single Set of Measurement Times: ≤ 20, can simultaneously measure two varieties
Yarn Liner Test Range: 0.3 mm
Impurities and Dust Levels: 16
Defect Value (Simultaneously Output – 12 Grades):
- Thin: -30%, -40%, -50%, -60%
- Thick: +35%, +50%, +70%, +100%
- Nep: +140%, +200%, +280%, +400%
Wavelength Range: 1 cm - 2,950 m
Spectrum Channel: 170 channels
Power Supply: 220 V ±10%, 50 Hz ±5 Hz, ≤ 500 VA
