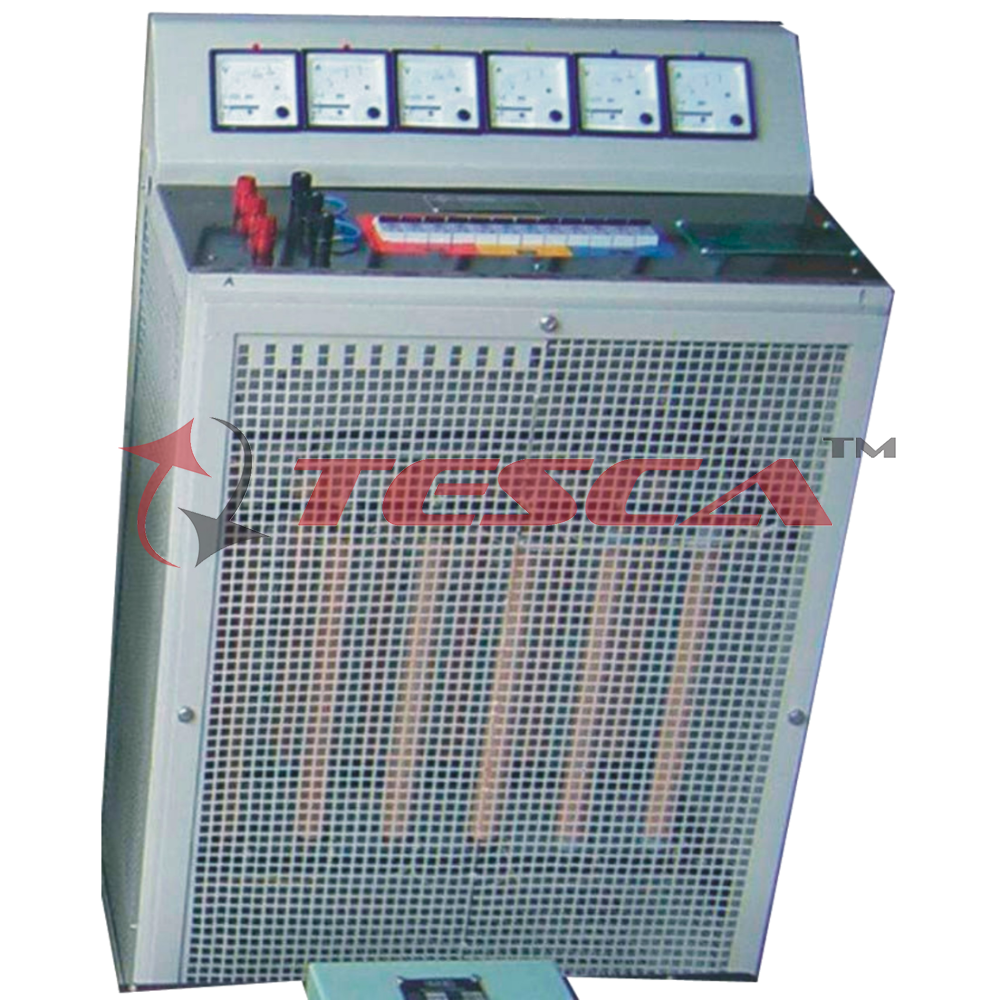

3 Phase / 15 A / 10 Steps 415 V / star connected with all 6 wires brought out air cooled / Wire wound resistive Load bank controlled by rotary switches in 6 steps. Complete with mains switch and caster wheels for easy movement.

Order Code: 69019C3

Category: Electrical Machine Lab

Voltage utilized in industry are of either Resisitive, Inductive or Capacitive types these provide various types of power factor and the power system behaves accordingly. Resistive load banks are used to provide braking effect or for H...



SPECIFICATION

Voltage utilized in industry are of either Resisitive, Inductive or Capacitive types these provide various types of power factor and the power system behaves accordingly. Resistive load banks are used to provide braking effect or for Heat dissipation.

These have canthel wires wounded on porcelain tubes through which electricity is passed & current flows, normally for Resistive loads the Power factor is unity.

This Model is the Industrial/Educational model suitable for demonstrating to students the complete know of the Basics, Loading provided in steps, Study of Efficiency & Maintenance of these Loads packaged in small rating. Students can make connections of their own with the help of the terminations provided.

Technical Specs :
Power ratings available : 1KW / 2KW / 5 KW / 10KW
Voltage Primary : 440VAC 3Phase/ 220VAC Single phase /220V DC
Enclosed in cabinet with Steps provided for loading, meters provided for each phase & terminations brought out on Banana terminals
