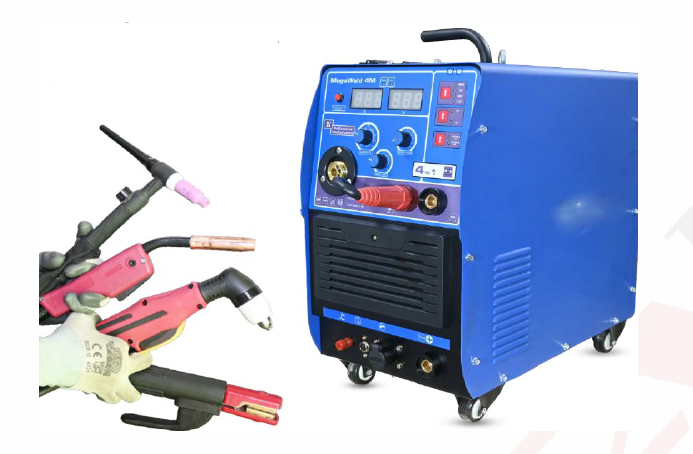

4-in-1 Welding Machine
Order Code: 25268466.2.2
Category: General Lab Equipment V
5 in 1 Welding Methods MIG, TIG, MMA, CUT, FCAW Power Supply 380/415V Frequency 50/60 Hz MIG Current Range 40–300A MMA Current Range 10–250A TIG Current Range 10–250A Cutting Current Range 10–100A Max C...
SPECIFICATION
5 in 1
Welding Methods MIG, TIG, MMA, CUT, FCAW
Power Supply 380/415V
Frequency 50/60 Hz
MIG Current Range 40–300A
MMA Current Range 10–250A
TIG Current Range 10–250A
Cutting Current Range 10–100A
Max Cutting Thickness Up to 25mm
MIG Wire Diameter 0.6 / 0.8 / 1.0 mm
Max Electrode Diameter 4.0 mm
MIG Spool Capacity Up to 15 kg
Rated Power 12.1 kVA
Protection Class IP21S
Insulation Class H
Power Factor (cosφ) 0.9
Inductance Adjustment Yes
2T/4T Modes Yes
Non-Touch Pilot Arc Yes
Overload Protection Yes
Display Type Digital
Cooling System Forced Air Cooling
Dimensions (L×W×H) 450 × 310 × 390 mm
Weight 38 kg
Accessories Included TIG torch, MIG torch, plasma
torch, electrode holder with
cable, ground clamp with
cable, water separator with
pressure gauge, connecting
hose with quick-release
couplings, user manual
