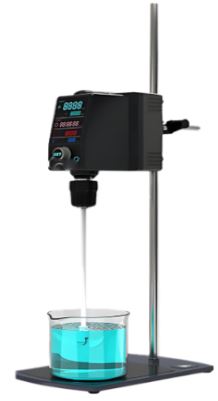

Overhead Stirrer

1. Application: stir liquid mixture (pulp, biochar, etc.) and used for Laboratory Mixing, Handling High Viscosity Samples, Volume Capacity, Precise Speed Control, - Timed Operations
2. Feature: - Extremely bright and easy-to-read display, all set and actual Parameter values are displayed in parallel and information includes set speed, real speed, torque, and timer.
3. - Operating time can be set up to 999:59 minutes; automatic switch off
4. - Automatically stops if blocked – no burn-out or damage
5. - Overload, overcurrent and overtemperature protection

Technical Specification:

1. - Dimensions (W×H×D) mm: 80×215×196 (±5mm)
2. - Construction material: Techno polymer and epoxy painted aluminium alloy
3. - Stirring volume max (H2O): 25 liters
4. - Torque max: 40 Ncm
5. - Chuck range: Min.1 to Max. 10 mm
6. - Visualization of set speed: at least display LCD
7. - Electronic protection rating: IP 40
8. - Electronic speed regulation: Min. 50 rpm to Max. 2000 rpm
9. - Max viscosity: 25000 (mPa.s)
10. - Allowed room temperature: Min. 0 to Max. 40 °C
11. - Power: 120 W
12. - Power Supply: AC 220V-240V

Standard Requirement:

1. - Standard and Compliance: CE 2002, 96 certificate or equivalent.
2. - Language: English language available on machine and manual.
3. - Warranty: At least 1 year on Mechanical, Electrical parts and Services.
4. - Include Installation and Training:
5. • On-site installation performed by certified technicians.
6. • User training covering equipment, full operation, maintenance, (minimum 1 full training session) at least 2 trainees.
7. • Provision of training materials, including user manuals.
