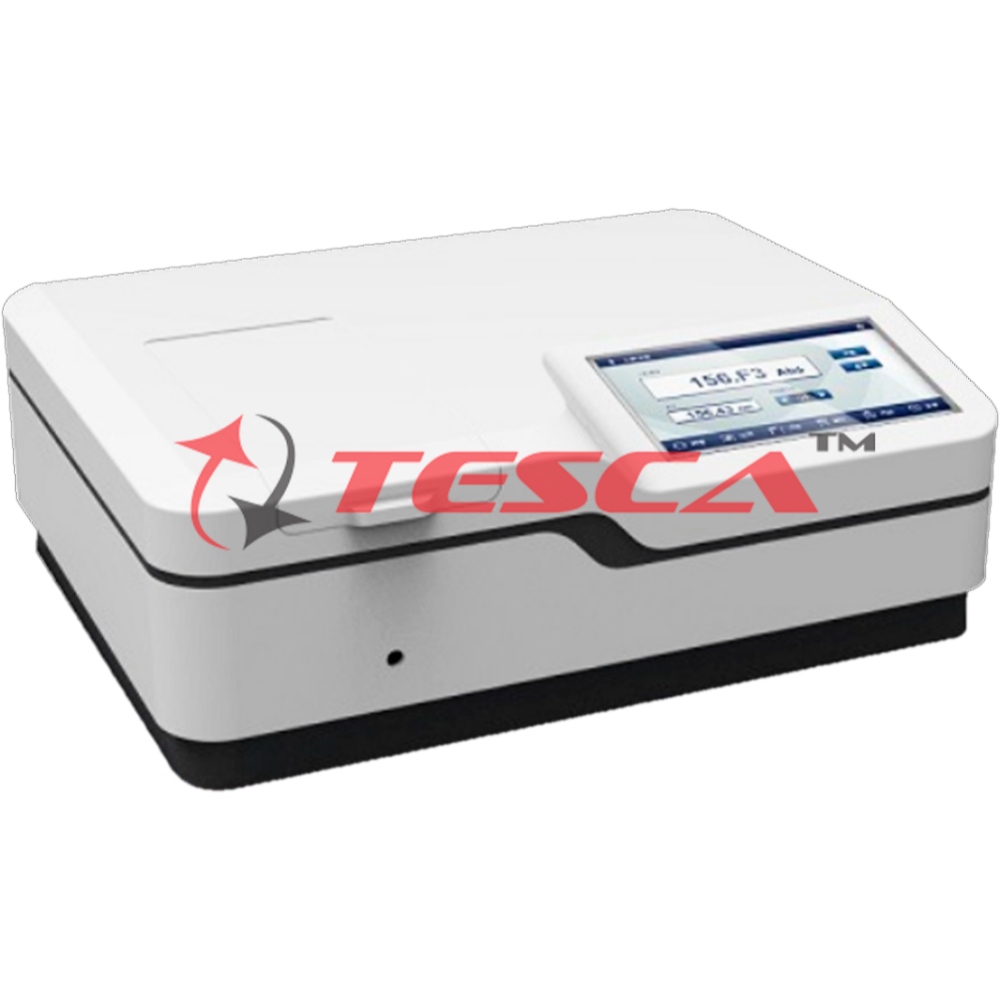

Double Beam Microprocessor Xenon Flash Lamp Spectrophotometer
Order Code: 58011
Category: Chemistry Lab
SALIENT FEATURES : High quality xashing xenon lamp which can start to test directly without preheating. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum Scan, DNA/Protein test, Multi-wavelength tes...
SPECIFICATION
SALIENT FEATURES :
- High quality xashing xenon lamp which can start to test directly without preheating.
- Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum Scan, DNA/Protein test, Multi-wavelength test, etc.
- In-house massive memory is capable of saving up to 1024M for test data & working curves.
- Supports USB storage, The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage
- Large sample chamber can accommadate 5-100mm cuvettes of all kinds. Provide at Extra cost.
- Extensive accessories are optional, such as auto 8-cell holder, peltier/sipper system, 21 CRR compliant software Provide at Extra cost. etc.
- Auto Wavelength Setting
- Tungsten/Deuterium Lamp can be Turned ON/OFF Individually to Extend Lifetime
- On-Screen Standard Kinetic Carve Display
|
TECHNICAL SPECIFICATION |
|
|
Optical System |
Double Beam, Grating 1200 lines/mm |
|
Wavelength Range |
190 nm-1100nm |
|
Spectral Bandwidth |
1 nm |
|
Wavelength Accuracy |
±0.1nm656.1nm, ±0.3nm@all |
|
Wavelength Repeatability |
£ 0.1 nm |
|
Photometric Accuracy |
0.2%T(0~100%T),±0.002A(0-0.5A),±0.004A(0.5-1A) |
|
Photometric Repeatability |
£0.15%T(0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A) |
|
Photometric Range |
0-200%T, 0.3-3A, 0-9999C (0-9999F) |
|
Stray Light |
0.03%T@220nm, 360 nm |
|
Stability |
±0.0005A/h@500nm |
|
Baseline Flatness |
±0.001A |
|
Noise |
0.0005A@500nm |
|
Work Mode |
T%, Abs, Conc, Reflectance, E, |
|
Scanning Speed |
Hi, Med, Low (Max. 3000nm/min) |
|
Wavelength Setting |
Auto |
|
Display |
10.1" TFT Colored Capacitive Touch Screen |
|
Light Source |
Imported Xenon Lamp |
|
Detector |
Imported Silicon Photodiode |
|
Cuvette Holder |
10mm single hole cell holder |
|
Output |
USB drive, USB host, Rs232 |
|
Power |
AC 220V/50Hz or AC 110V/60Hz |
|
Shipping Size |
810x660x390mm |
|
Gross Weight |
27kg |
|
Standard Accessaries |
10mm glass cuvette x 4, 10mm quartz cuvette x2, Power cord, User's Manual, PC software |
