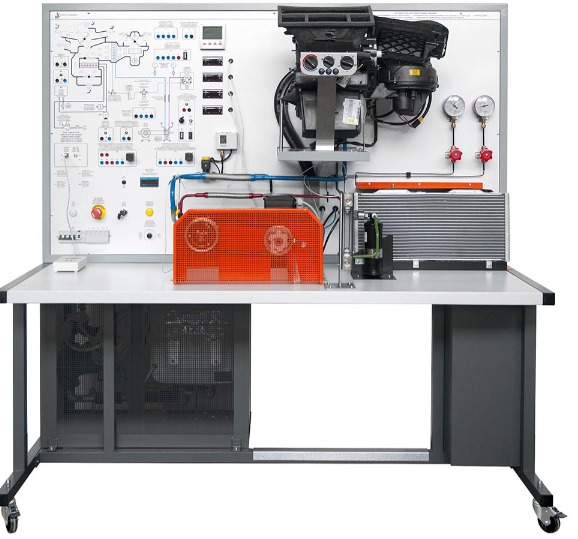

Air Conditioning System for Automotive Trainer
Order Code: 23246920.5.79
Category: General Lab Equipment V
1. General Specifications Power Supply: Voltage: 12V DC / 220–240V AC Frequency: 50 Hz Dimensions: 1000 mm (L) × 1600 mm (W) × 1800 mm (H) 2. Features Refrigerant: R134...
SPECIFICATION
1. General Specifications
-
Power Supply:
-
Voltage: 12V DC / 220–240V AC
-
Frequency: 50 Hz
-
-
Dimensions: 1000 mm (L) × 1600 mm (W) × 1800 mm (H)
2. Features
-
Refrigerant: R134a
-
Components:
-
Air-cooled condenser
-
Evaporator located in an air duct
-
Relative humidity and temperature sensors on both sides of the evaporator
-
Adjustable fan for airflow control
-
High- and low-pressure gauges
-
Pressure switch, sight glass, filter dryer, and TEV (Thermostatic Expansion Valve)
-
Pressure transducers for instrumentation
-
Four thermocouples for temperature monitoring
-
3. Learning Outcomes
Students using this trainer will learn about:
-
Psychrometric charts and related concepts
-
Enthalpy changes in air flow
-
Pressure–Enthalpy charts
-
Coefficient of Performance (COP) calculations
-
Superheat and sub-cooling calculations
-
Isentropic and non-isentropic efficiencies of the compression stage
-
Effect of air flow on COP
