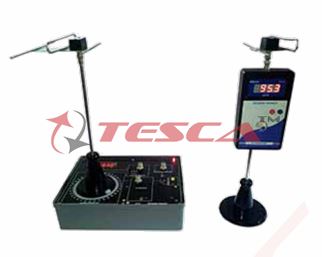

ANTENNA TRAINER-

Order Code: 25268469R.35

Category: General Lab Equipment V

 Technical Specifications    The trainer includes basic panel with generator, Lecher line, RF detector, mobile receiver, joint for fixing too the base, supporting base for receiver, reflector, locking knob, shielded ...



SPECIFICATION


 Technical Specifications


  •  The trainer includes basic panel with generator, Lecher line, RF detector, mobile receiver, joint for fixing too the base, supporting base for receiver, reflector, locking knob, shielded connecting cable between the Lecher line and the detector with banana plugs, diam. 2 mm (length = 60 cm), set of cables for measuring and connections, coaxial support for antenna (mast) with turning base
  •  ‘T’ BNC, set of 5 monopoles with banana terminations, different lengths, ground-plane antenna
  •   Yagi antenna, folded dipole antenna, simple dipole antenna
  •   Coaxial cable RG59 with F/F BNC
  •   length = 60 cm complete with M/M and F/F adapters
  •   Working frequency: from 860 to 950 MHz
  •   Input power supply: - 15 Vdc, 200 mA
